1970 Yamaha AT1/1M Rear Arm & Chain Case OEM Parts Diagram

Submodel AT1B - 1970

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

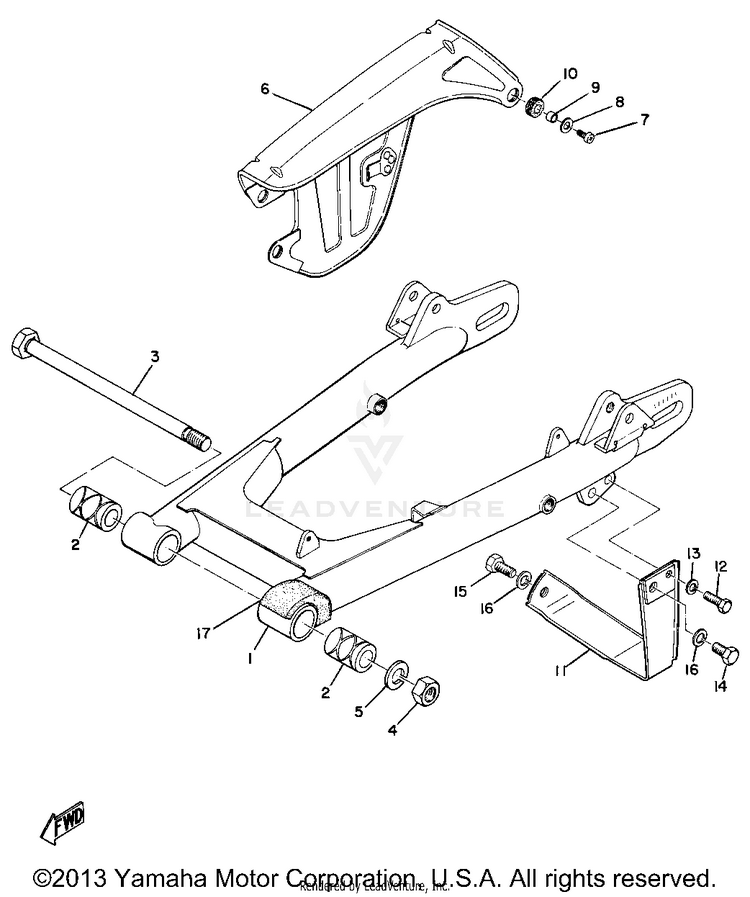

REAR ARM & CHAIN CASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1248-22110-00-33REAR ARM | YAMAHA BLACK$82.83$64.61Not Shipping
2174-22123-00-00BUSH 1$18.49$15.16Not Shipping
3248-22141-00-00SHAFT, PIVOT$13.78$11.30Not Shipping
495337-14600-00

(replaces part #
95312-14600-00)

NUT$12.49$10.24Usually ships in 7-10 business days
592907-14100-00

(replaces part #
92901-14100-00)

WASHER (6TC)$8.49$6.622 In-Stock
6248-22311-00-35CASE, CHAIN | SILVER$19.50$15.99Not Shipping
797885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
890201-06M08-00WASHER, PLATE$2.55$2.197 In-Stock
990560-05001-00SPACER$4.80$4.32Usually ships in 7-10 business days
1090480-12096-00GROMMET (141-82596-00)$2.40$2.16Not Shipping
11248-22318-00-33GUARD, CHAIN | YAMAHA BLACK$8.06$7.25Not Shipping
1297017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1490101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
1597013-08020-00

(replaces part #
97313-08020-00)

BOLT (661)$1.80$1.554 In-Stock
1692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
17248-22151-00-00SEAL, GUARD$3.76$3.38Not Shipping
