1970 Yamaha AT1/1M Shifter 2 OEM Parts Diagram

Submodel AT1B - 1970

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFTER 2

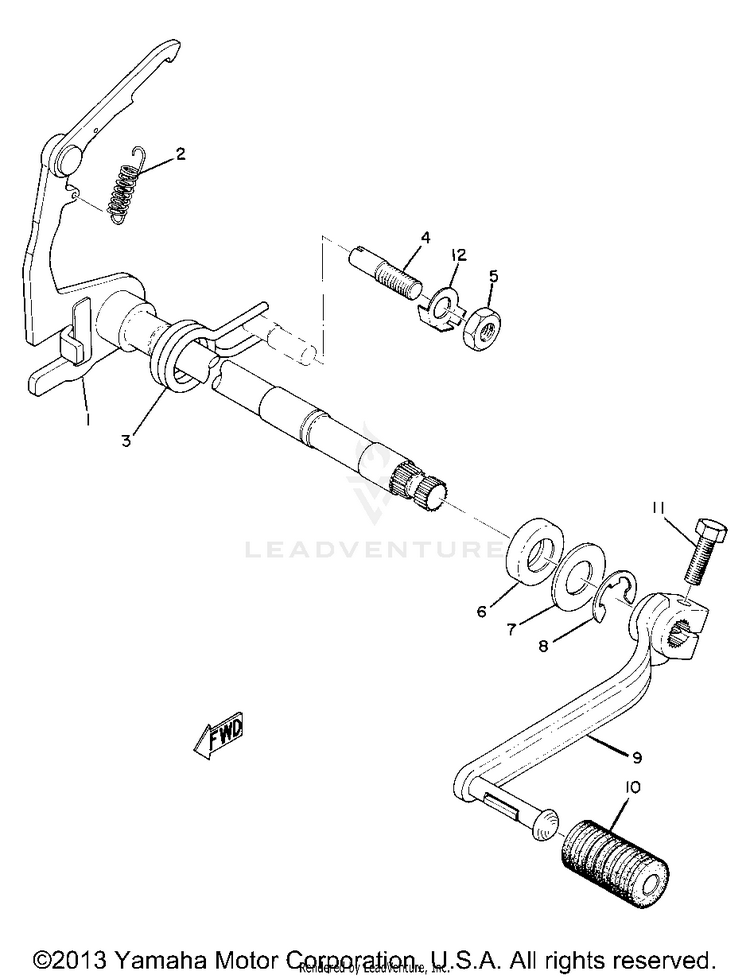

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90215-08014-00WASHER, LOCK$6.49$5.061 In-Stock
-173-18111-01-93PEDAL, SHIFT$40.99$33.61Not Shipping
-3M5-18101-01-00

(replaces part #
248-18101-02-00)

SHIFT SHAFT ASY. 1$83.99$65.51Usually ships in 7-10 business days
190170-08193-00

(replaces part #
90170-08029-00)

NUT, HEXAGON$4.65$4.0010+ In-Stock
290506-09009-00SPRING, TENSION$9.49$7.402 In-Stock
390508-32207-00SPRING, TORSION (132-18124-00)$11.49$9.42Usually ships in 7-10 business days
490149-08094-00SCREW, SPECIAL SHAPE$8.49$6.62
595333-08600-00NUT$3.80$3.4710+ In-Stock
693109-14010-00OIL SEAL, SDO-TYPE$14.49$11.3010+ In-Stock
790201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
899001-12600-00CIRCLIP$6.49$5.064 In-Stock
9367-18111-00-00PEDAL SHIFT$48.99$38.211 In-Stock
10132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
1197024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
12248-18139-09-00WASHER, LOCK$5.86$5.27Usually ships in 7-10 business days
