1970 Yamaha AT1/1M Tail Lamp OEM Parts Diagram

Submodel AT1B - 1970

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAIL LAMP

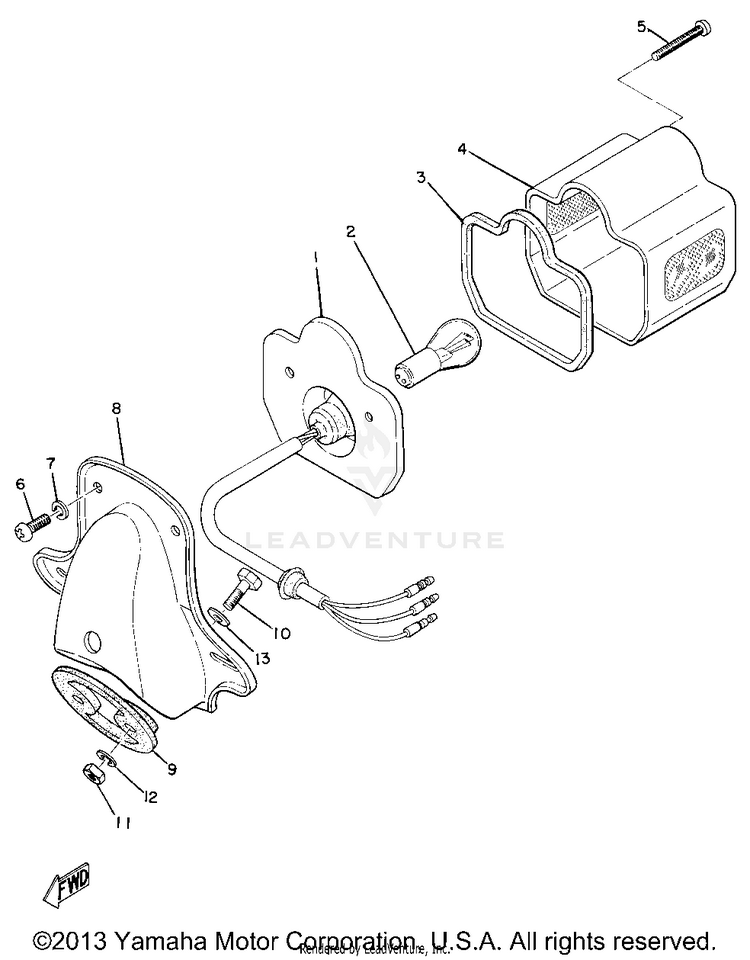

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-122-84514-30-XX

(replaces part #
122-84514-30-00)

BULB 6V21CP(1154)$2.40$2.06Not Shipping
-261-84711-60-00BASE, TAILLIGHT$20.99$17.21Usually ships in 7-10 business days
-261-84710-60-00TAILLIGHT UNIT ASSEMBLY$37.82$31.01Usually ships in 7-10 business days
1251-84510-60-00TAILLIGHT UNIT ASSEMBLY$36.48$29.91Usually ships in 7-10 business days
2137-84714-61-XX

(replaces part #
137-84714-61-00)

BULB (12V-21/5W)$4.80$4.32Not Shipping
3168-84712-60-00SEAT, BASE$10.18$8.35Not Shipping
4168-84721-60-00LENS, TAILLIGHT$13.99$10.91Not Shipping
53AA-84331-00-00SCREW, RIM ADJUSTING$3.40$2.92Not Shipping
697885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
8164-84751-60-35BRACKET, LICENSE | SILVER$7.99$7.19Not Shipping
9248-84553-00-00DAMPER$3.76$3.38Not Shipping
1090109-06005-00

(replaces part #
90109-06021-00)

BOLT$8.49$7.64Usually ships in 7-10 business days
1195380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1390201-085E6-00WASHER PLATE (156-24186-00)$11.49$8.968 In-Stock
