1970 Yamaha AT1/1M Seat & Carrier OEM Parts Diagram

Submodel AT1B - 1970

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT & CARRIER

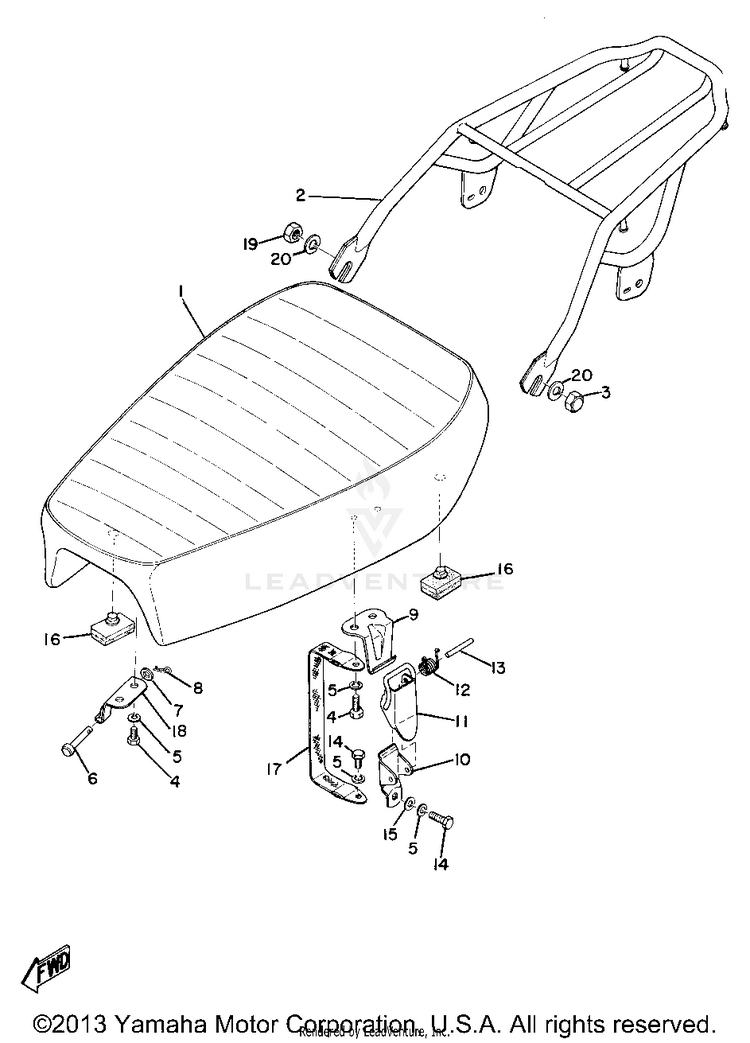

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-261-24711-00-00COVER, SINGLE SEAT$58.26$45.44Not Shipping
1261-24710-01-00SINGLE SEAT ASSEMBLY$145.99$113.87Not Shipping
2444-24810-00-00CARRIER AT/CT$14.99$12.29Not Shipping
395380-10800-00

(replaces part #
95303-10800-00)

NUT$16.49$14.16Usually ships in 7-10 business days
497013-06012-00BOLT$6.49$5.0610+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
691701-05055-00PIN, CLEVIS$8.49$6.624 In-Stock
792990-05200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
890468-10050-00CLIP$3.05$2.6210+ In-Stock
9214-24728-00-33BRACKET, SEAT | YAMAHA BLACK$6.99$6.29Not Shipping
10214-24718-00-00BRACKET, SEAT$15.49$12.70Not Shipping
11214-24776-00-33LEVER, SEAT | YAMAHA BLACK$32.99$27.05Not Shipping
1290508-10012-00SPRING, TORSION$9.99$8.99Not Shipping
1390249-04068-00PIN, SPECIAL SHAPE$2.80$2.52Not Shipping
1497017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
1592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
16214-24724-00-00DAMPER, SEAT$8.49$6.6210+ In-Stock
17214-24778-00-00BAND, SEAT FITTING$3.57$3.21Not Shipping
18248-24726-00-33HINGE, SEAT$14.49$11.88Not Shipping
1995380-10700-00

(replaces part #
95303-10700-00)

NUT$6.49$5.0610+ In-Stock
2092990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
