1972 Yamaha AT2/2M Crankcase Cover OEM Parts Diagram

Submodel AT2M - 1972

Shop Aftermarket Parts

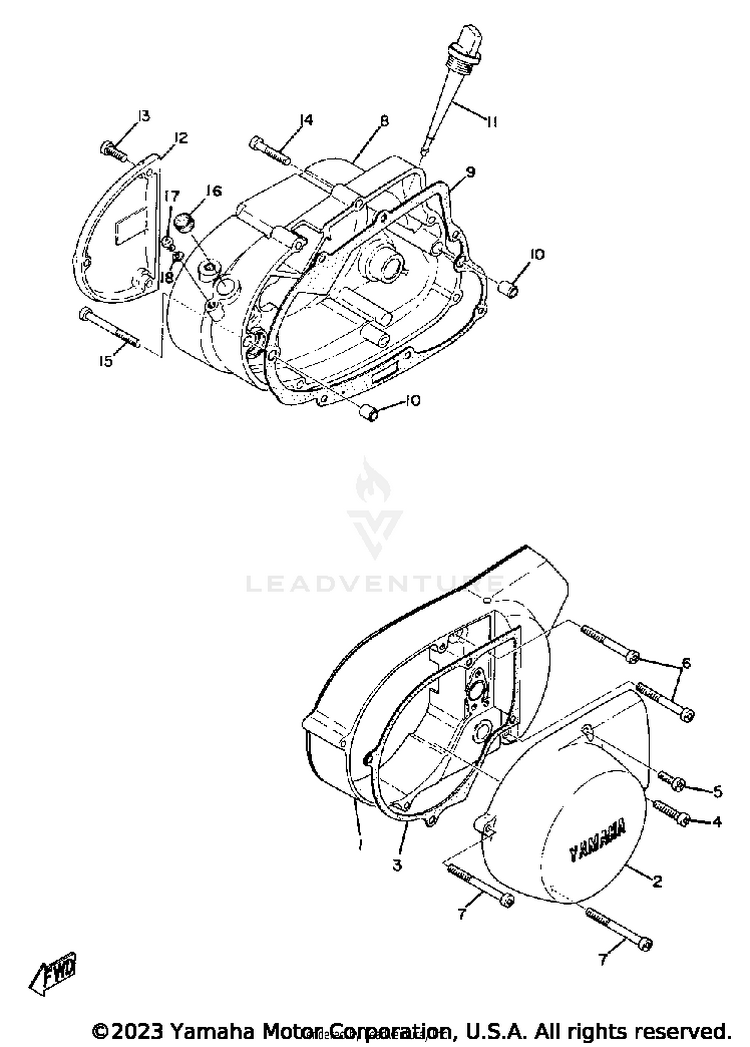

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1482-15411-00-Y4COVER, CRANKCASE L$98.99$77.21Usually ships in 7-10 business days
1318-15411-00-00COVER,CRANKCASE L$63.46$49.50Usually ships in 7-10 business days
2316-15415-00-00COVER, GENERATOR$32.87$26.95Not Shipping
2318-15415-00-00COVER,GENERATOR$19.37$15.88Usually ships in 7-10 business days
33GY-15455-00-00

(replaces part #
314-15455-00-00)

GASKET 1$16.99$13.93Not Shipping
497885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
597880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
598580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
698580-06555-00

(replaces part #
98580-06055-00)

SCREW,PANHEAD$5.99$4.672 In-Stock
798580-06565-00SCREW, PAN HEAD$10.49$8.188 In-Stock
8314-15421-00-00COVER, CRANKCASE R$74.24$57.91Usually ships in 7-10 business days
8318-15421-00-00COVER,CRANKCASE R$49.49$40.58Usually ships in 7-10 business days
93GY-15451-00-00GASKET, CRCS COVER$33.99$26.519 In-Stock
1099530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
11315-15362-01-00PLUG, OIL LEVEL$16.49$13.52Usually ships in 7-10 business days
123V6-15416-00-00COVER, OIL PUMP$32.99$27.05Not Shipping
12318-15416-00-00COVER,OIL PUMP$6.67$6.00Usually ships in 7-10 business days
1397880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
1398580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1497885-06035-00

(replaces part #
98580-06035-00)

SCREW, PAN HEAD$6.49$5.119 In-Stock
1598580-06560-00

(replaces part #
92580-06560-00)

SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
1690338-16029-00

(replaces part #
90338-16015-00)

PLUG$9.49$7.402 In-Stock
1798580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
