1972 Yamaha AT2/2M Frame OEM Parts Diagram

Submodel AT2M - 1972

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

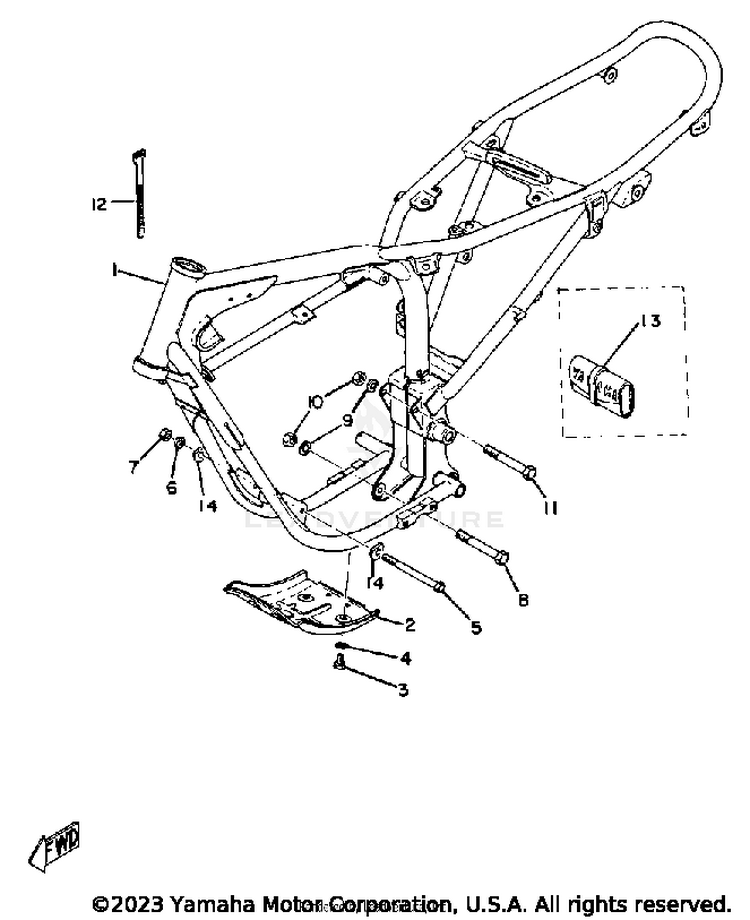

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1318-21110-00-33FRAME | YAMAHA BLACK$248.99$194.21Usually ships in 7-10 business days
2248-21471-00-33PROTECTOR, ENGINE | YAMAHA BLACK$23.94$19.63Not Shipping
397013-06012-00BOLT$6.49$5.0610+ In-Stock
492990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
595814-08110-00

(replaces part #
95811-08110-00)

BOLT, FLANGE$8.49$7.64Usually ships in 7-10 business days
590109-08379-00BOLT$2.65$2.38Usually ships in 7-10 business days
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
790185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
795333-08600-00NUT$3.80$3.4710+ In-Stock
897321-10090-00BOLT, HEXAGON (91101-10090)$4.60$4.14Not Shipping
992990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1090185-10031-00NUT, SELF-LOCKING$3.70$3.18Not Shipping
1197027-10095-00

(replaces part #
97021-10095-00)

BOLT,HEXAGON$2.75$2.48Usually ships in 7-10 business days
12437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
13315-W2810-10-00TOOL KIT$42.99$35.25Not Shipping
1490209-08050-00WASHER, SPEC''L SHAP$11.49$9.42Usually ships in 7-10 business days
