1972 Yamaha AT2/2M Exhaust OEM Parts Diagram

Submodel AT2M - 1972

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

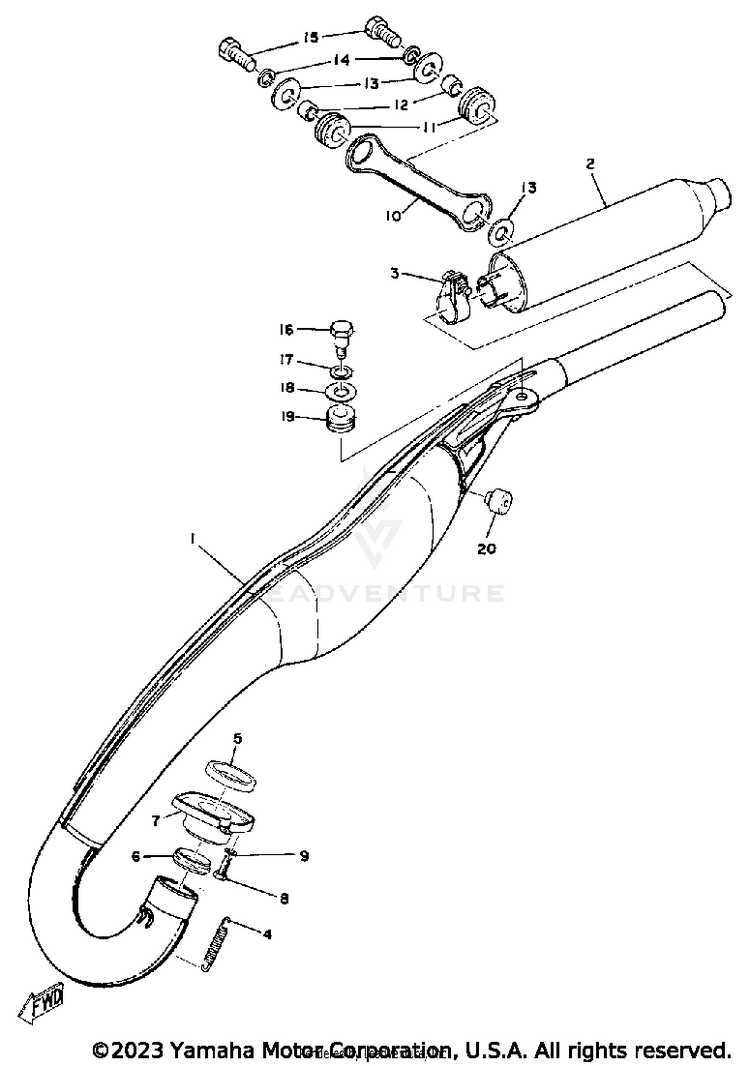

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1318-14610-01-00EXHAUST PIPE ASY L$234.99$183.29Usually ships in 7-10 business days
2318-14753-00-00SILENCER,EXHAUST$73.79$57.56Not Shipping
390460-26047-00CLAMP,HOSE$6.99$6.29Usually ships in 7-10 business days
490506-12029-00SPRING, TENSION$6.49$6.45
53PA-14613-10-00

(replaces part #
152-14613-00-00)

GASKET, EXHAUST PIPE$16.49$12.8610+ In-Stock
6248-14623-10-00

(replaces part #
248-14623-00-00)

GASKET$8.49$6.6210+ In-Stock
72K5-14612-00-00NUT, RING$18.99$15.57Not Shipping
897D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
10318-14791-00-00STAY,MUFFLER$7.68$6.91Usually ships in 7-10 business days
11168-21638-00-00DAMPER 1$10.99$8.5710+ In-Stock
1290387-09065-00COLLAR$3.00$2.70Not Shipping
1390201-085E6-00WASHER PLATE (156-24186-00)$11.49$8.968 In-Stock
1492990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1597013-08020-00

(replaces part #
97313-08020-00)

BOLT (661)$1.80$1.554 In-Stock
1690109-08391-00BOLT (276-14719-00)$4.85$4.36Not Shipping
1790201-126A7-00

(replaces part #
90201-12190-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1890201-18262-00WASHER, PLATE$10.49$8.1810+ In-Stock
19168-21638-00-00DAMPER 1$10.99$8.5710+ In-Stock
20116-27114-00-00STOPPER, MAIN STAND$11.99$9.353 In-Stock
