1973 Yamaha MX250 C-D-I Magneto OEM Parts Diagram

Submodel MX250 - 1973

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

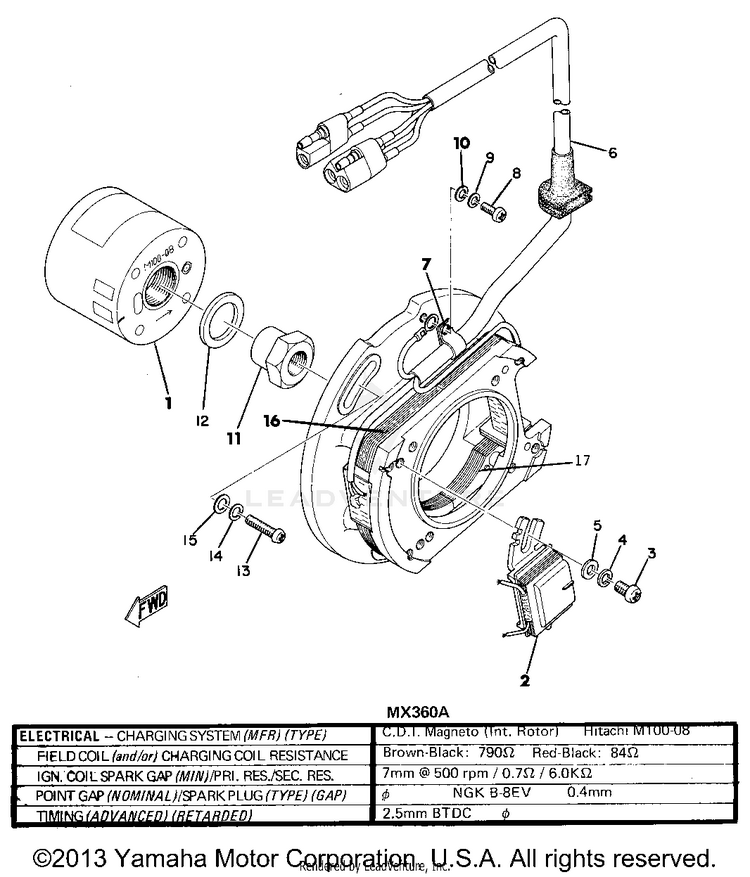

C-D-I MAGNETO

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-364-85540-13-00CDI UNIT ASSEMBLY$491.99$383.75Usually ships in 7-10 business days
-364-85550-10-00ROTOR ASSEMBLY$169.99$132.59Usually ships in 7-10 business days
-364-85510-10-00STATOR ASSEMBLY$301.99$258.36Usually ships in 7-10 business days
1364-85500-11-00CDI MAGNETO ASSEMBLY$338.99$290.01Usually ships in 7-10 business days
2364-85543-10-00COIL PULSER$114.99$89.69Not Shipping
397885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
492990-05100-00WASHER, SPRING-$0.8310+ In-Stock
592990-05200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
6364-85515-10-00LEAD WIRE ASSEMBLY$22.32$18.30Not Shipping
7109-81328-11-00CLAMP$9.49$8.54Not Shipping
898580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
992990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1092990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
11322-85553-10-00NUT, ROTOR$19.14$15.69Not Shipping
12322-85554-10-00WASHER, ROTOR$6.48$5.83Not Shipping
1398580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
16322-85566-10-00COIL, CHARGE 1 | M5-009A$67.96$53.01Not Shipping
17322-85567-10-00COIL, CHARGE 2$69.14$53.93Not Shipping
