1973 Yamaha MX250 Steering OEM Parts Diagram

Submodel MX250 - 1973

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

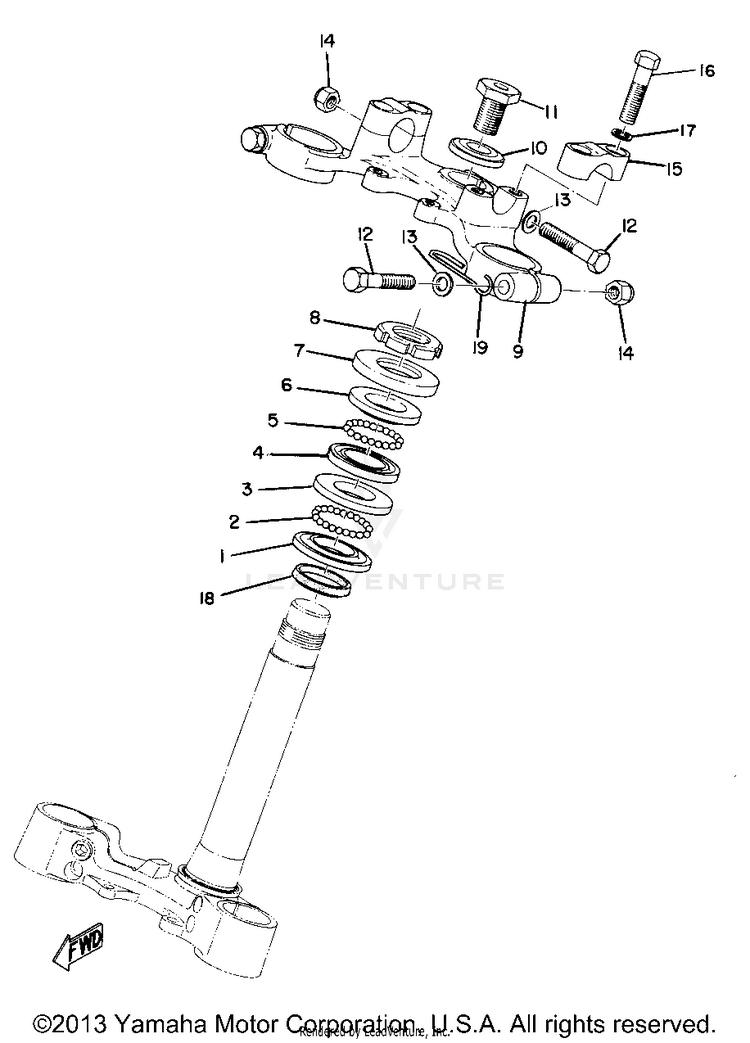

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-95617-08100-00

(replaces part #
95611-08100-00)

NUT, U$10.49$8.1810+ In-Stock
1B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
293501-04011-00BALL$9.49$7.4010+ In-Stock
3B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
4BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
593503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
6BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
7122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
890179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
9321-23435-01-98CROWN, HANDLE | FROSTING BLACK$72.99$56.93Not Shipping
1090209-14022-00WASHER, SPEC''L SHAP (214-23443$6.49$5.84Not Shipping
1190109-14235-00BOLT (322-23451-00)$7.49$6.74Not Shipping
1297013-08055-00

(replaces part #
97313-08055-00)

BOLT (661)$3.85$3.3110+ In-Stock
1390201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1490185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
15322-23441-01-98HOLDER, HANDLE UPR | FROSTING BLACK$7.68$6.91Usually ships in 7-10 business days
1697013-08035-00

(replaces part #
97313-08035-00)

BOLT$6.49$5.0610+ In-Stock
1792990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
18164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
19434-23319-00-00HOLDER, CABLE 2$4.15$3.74Not Shipping
