1973 Yamaha MX250 Crank Balancer OEM Parts Diagram

Submodel MX250 - 1973

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANK BALANCER

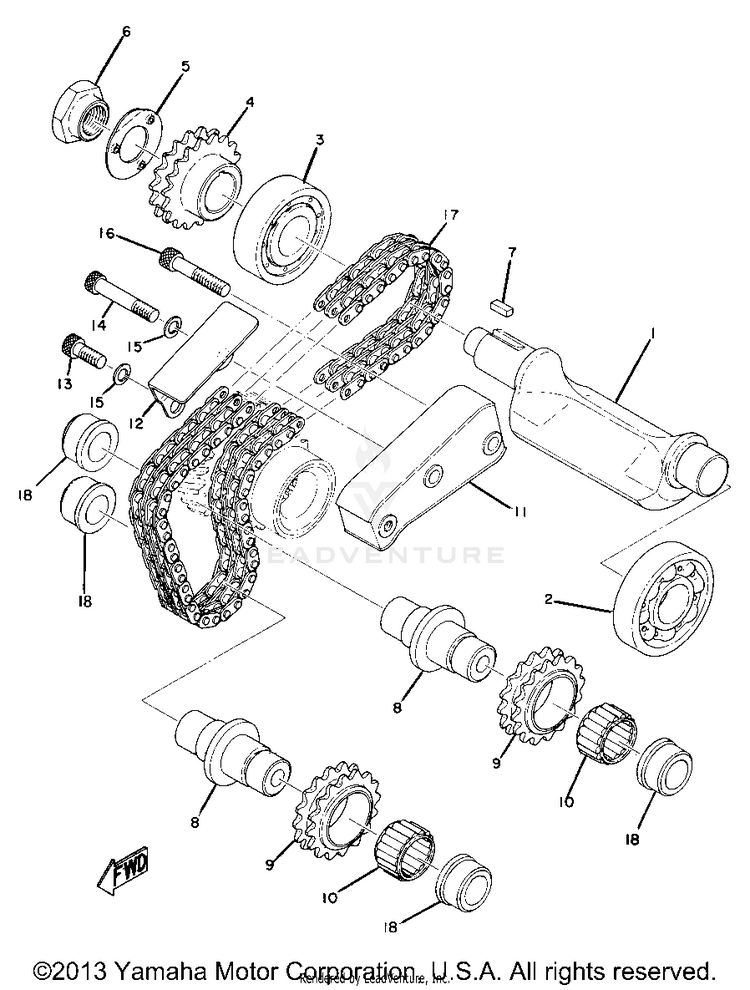

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1363-11454-01-00WEIGHT 1$34.30$28.13Usually ships in 7-10 business days
293306-20410-00BEARING$13.58$11.14Not Shipping
393390-00008-00BEARING, CYLINDER. #90$36.74$30.13Usually ships in 7-10 business days
4363-11458-01-00SPROCKET, WHEEL$19.49$15.98Usually ships in 7-10 business days
5363-11449-00-00WASHER, LOCK$1.78$1.60Not Shipping
6363-11459-00-00NUT, SPECIAL$3.76$3.38Usually ships in 7-10 business days
790282-04004-00KEY, STRAIGHT$1.25$1.12Usually ships in 7-10 business days
8363-11455-01-00SHAFT 1$16.96$13.91Usually ships in 7-10 business days
9363-11438-00-00SPROCKET, IDLE 2$22.86$18.75Usually ships in 7-10 business days
1093310-42071-00BEARING, CYLINDER.#10$12.04$9.87Usually ships in 7-10 business days
11363-11457-02-00GUIDE, CHAIN$45.99$37.71Not Shipping
12363-11474-00-00GUIDE, UPPER$7.88$7.09Not Shipping
1391317-08016-00

(replaces part #
91316-08016-00)

BOLT$9.49$7.4010+ In-Stock
1491317-08035-00

(replaces part #
91316-08035-00)

BOLT$8.49$7.64Usually ships in 7-10 business days
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1691317-08030-00

(replaces part #
91316-08030-00)

BOLT, HEX.S OCKET HEAD$9.49$7.4010+ In-Stock
1794862-09066-00CHAIN$68.59$53.50Not Shipping
18363-11466-00-00BUSH$4.15$3.74Usually ships in 7-10 business days
