1973 Yamaha MX250 Crank - Piston OEM Parts Diagram

Submodel MX250 - 1973

Shop Aftermarket Parts

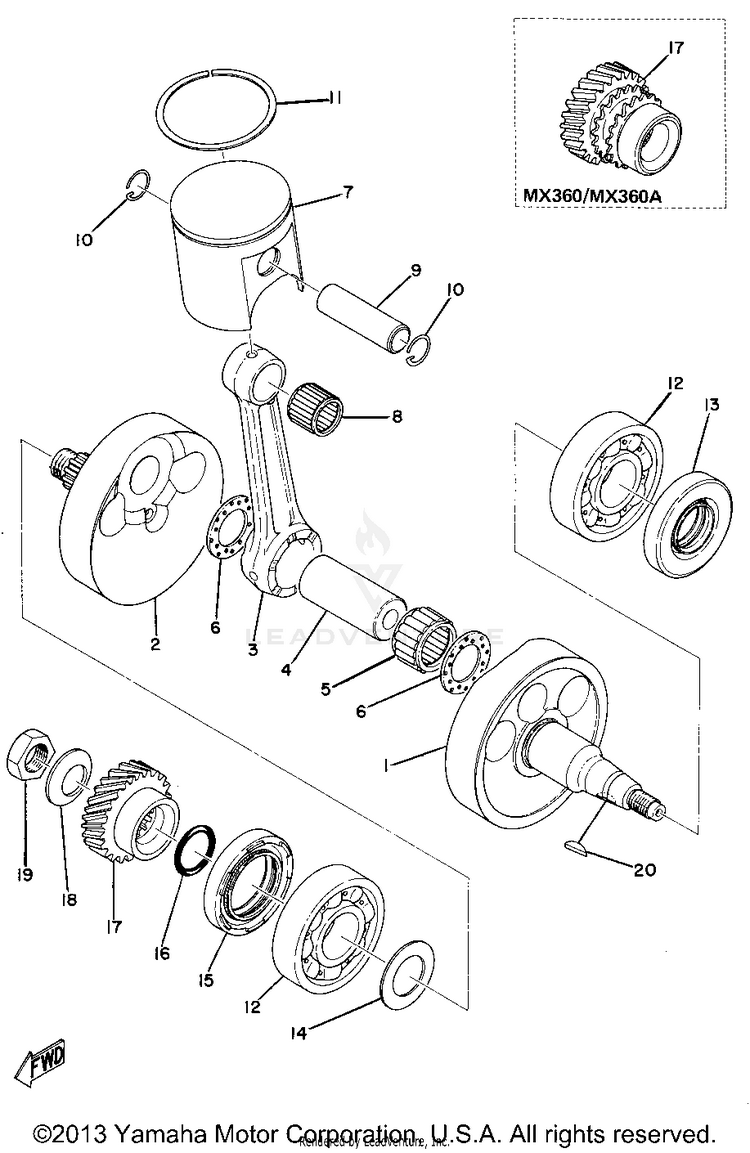

CRANK - PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-214-11633-00-00PIN, PISTON$36.99$28.856 In-Stock
-90209-25085-00WASHER, (90209-25220)$13.49$10.524 In-Stock
-93310-425P2-00

(replaces part #
93310-42541-00)

BEARING, CYLINDRICAL$82.99$64.733 In-Stock
-156-11564-00-04SHIM, CRANK 4 (25-44-0.5) | URURURUR$4.25$3.82Not Shipping
-93103-40058-00OIL SEAL, SW-TYPE$6.43$5.79Not Shipping
-214-11681-00-00PIN, CRANK 1 (DIA. 24MM) | 189MX250 PN378$27.22$22.32Usually ships in 7-10 business days
-93306-20633-00BEARING$83.99$65.51Usually ships in 7-10 business days
-510-11651-00-00ROD, CONNECTING$106.99$83.45Not Shipping
-365-11636-01-00PISTON 2 O/S 0.50 ((322-11636-0 | TIN COATING$94.99$74.09Usually ships in 7-10 business days
-322-11611-20-00RING, PISTON 2ND$70.99$55.37Not Shipping
-324-11636-01-00PISTON 2 O/S 0.50 (313-11636-00 | TIN COATING$84.99$66.29Not Shipping
-324-11638-01-00PISTON 4 O/S 1.00 (324-11638-00 | TIN COATING$89.99$70.19Not Shipping
-365-11638-01-00PISTON 4 O/S 1.00 (365-11638-00 | TIN COATING$94.99$74.09Not Shipping
-322-11611-10-00RING, PISTON 1ST$55.99$43.67Not Shipping
-365-11637-01-00PISTON 3 O/S 0.75 (365-11637-00 | TIN COATING$85.99$67.07Usually ships in 7-10 business days
-313-11611-10-00RING, PISTON 1ST$84.99$66.29Not Shipping
-313-11611-20-00RING, PISTON 2ND$58.99$46.01Not Shipping
-324-11637-01-00PISTON 3 O/S 0.75 (324-11637-00 | TIN COATING$89.99$70.19Usually ships in 7-10 business days
-322-11611-00-00RING, PISTON STD$26.68$21.88Not Shipping
-324-11635-01-00PISTON 1 O/S 0.25 | TIN COATING$68.99$53.81Not Shipping
-313-11611-30-00RING, PISTON 3RD (3RD O.S.)$58.99$46.01Usually ships in 7-10 business days
-313-11611-40-00RING, PISTON 4TH (4TH O.S.)$46.99$38.53Not Shipping
-363-16111-01-00GEAR, PRI DRIVE$54.99$42.89Usually ships in 7-10 business days
-364-11412-02-00CRANK 1 001 | 190~MX250$94.99$74.09Usually ships in 7-10 business days
-365-11400-00-00CRANKSHAFT ASSEMBLY$224.99$175.49Not Shipping
-364-11422-01-00CRANK 2 001 | 190~MX250$101.99$79.55Usually ships in 7-10 business days
-322-11611-40-00RING, PISTON 4TH$55.99$43.67Not Shipping
-322-11611-30-00RING, PISTON 3RD$55.99$43.67Usually ships in 7-10 business days
-365-11412-01-00CRANK 1$117.99$92.03Usually ships in 7-10 business days
-365-11422-00-00CRANK 2$76.99$60.05Usually ships in 7-10 business days
-364-11412-00-00CRANK 1$102.99$80.33Usually ships in 7-10 business days
1364-11400-01-00CRANKSHAFT ASSEMBLY | 190~MX250 PN378$233.99$182.51Not Shipping
2364-11422-00-00CRANK 2$63.89$49.83Usually ships in 7-10 business days
3431-11651-00-00ROD, CONNECTING$93.99$73.31Not Shipping
42X4-11681-00-00PIN, CRANK 1$88.99$69.41Usually ships in 7-10 business days
593310-524K4-00BEARING$129.99$101.39Usually ships in 7-10 business days
690209-24073-00WASHER, SPECIAL SHAPE$16.49$13.52Usually ships in 7-10 business days
7324-11631-01-96PISTON STD | 498~MX250A TIN COATINGM4-025$68.99$53.81Not Shipping
893310-218A6-00BEARING$42.99$33.5310+ In-Stock
9275-11633-00-00PIN, PISTON$38.99$30.412 In-Stock
1093450-20026-00CIRCLIP$9.49$7.4010+ In-Stock
11313-11611-00-00RING, PISTON STD$38.92$31.91Not Shipping
1293306-30630-00BEARING$79.99$62.395 In-Stock
1393103-30072-00OIL SEAL, SW-TYPE$19.49$15.98Not Shipping
14156-11564-00-03SHIM, CRANK 4 (25-44-0.3) | URURURUR$6.49$5.84Not Shipping
1593103-38086-00OIL SEAL, SW-TYPE$11.24$9.22Not Shipping
1693210-24235-00

(replaces part #
93210-25070-00)

O-RING$8.49$7.078 In-Stock
17364-16111-01-00GEAR, PRI DRIVE$57.99$45.23Not Shipping
18214-16119-00-00SPRING, BELLEVILLE$11.99$9.831 In-Stock
1990170-18086-00NUT, CRANKSHAFT$12.49$10.24Usually ships in 7-10 business days
2090280-05014-00KEY, WOODRUFF$10.49$8.60Usually ships in 7-10 business days
