1975 Yamaha GT80/MX Intake OEM Parts Diagram

Submodel GT80B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

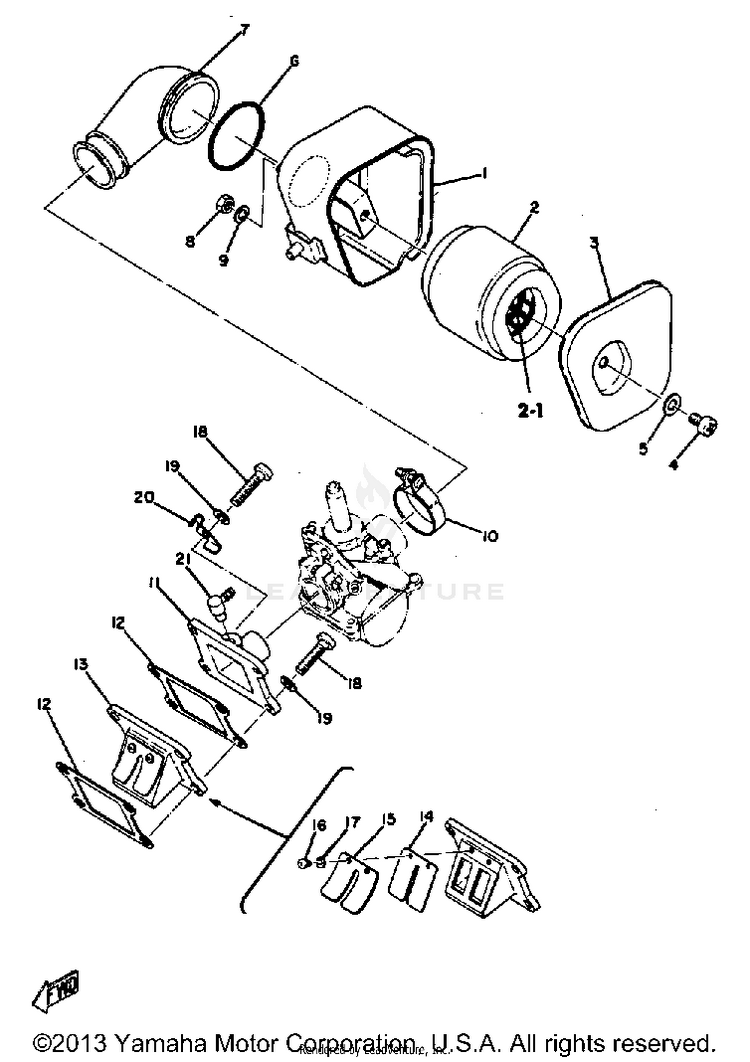

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1367-14411-00-00CASE, AIR CLEANER 1$48.99$40.17Not Shipping
2367-14451-08-00

(replaces part #
367-14451-09-00)

ELEMENT,AIR CLNR$16.49$12.864 In-Stock
32A3-14412-00-00CAP, CLEANER CASE 1$45.99$37.71Not Shipping
498580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
690506-06075-00SPRING, TENSION$9.49$7.401 In-Stock
7367-14453-02-00JOINT, AIR CLNR 1$45.99$35.873 In-Stock
895380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1090460-33013-00CLAMP, HOSE (353-14455-00-00)$25.99$21.31Usually ships in 7-10 business days
11374-13565-00-00JOINT, CARBURETOR (367-13565-00$52.99$41.33Not Shipping
123MT-13621-00-00GASKET, VALVE SEAT$9.49$7.405 In-Stock
13353-13610-01-00REED VALVE ASSEMBLY$196.99$153.65Usually ships in 7-10 business days
14314-13613-01-00REED, VALVE$42.99$33.534 In-Stock
1510X-13616-00-00

(replaces part #
314-13616-01-00)

STOPPER, REED VALVE$14.99$12.29Not Shipping
1698580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
1792990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
1898517-06025-00

(replaces part #
92501-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
20367-15378-00-00HOLDER$1.59$1.43Usually ships in 7-10 business days
213XV-13741-00-00

(replaces part #
278-13552-02-00)

NOZZLE$18.49$15.16Not Shipping
