1975 Yamaha GT80/MX Steering OEM Parts Diagram

Submodel GT80B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

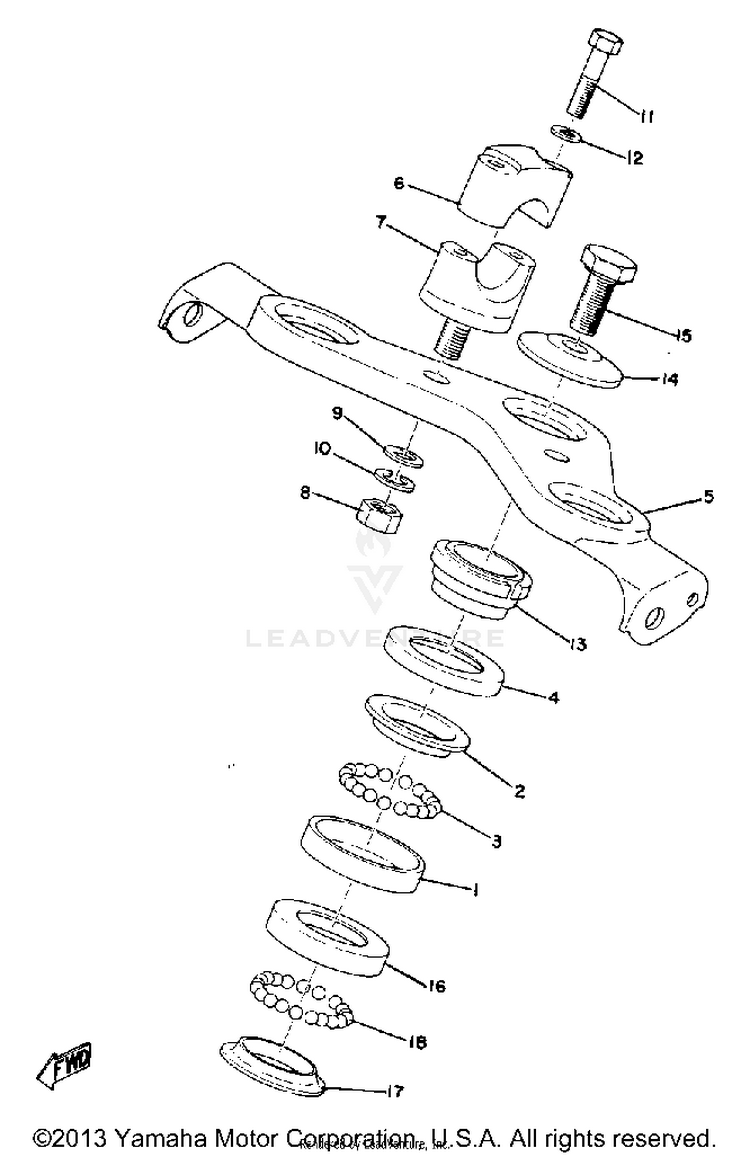

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-368-23435-00-35CROWN, HANDLE$12.49$10.24Not Shipping
1BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
2BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
393503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
4122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
5185-23435-00-98CROWN, HANDLE$49.99$40.99Not Shipping
6462-23441-01-00

(replaces part #
462-23441-00-00)

HOLDER,HANDLE UPR$16.99$13.93Usually ships in 7-10 business days
7462-23442-00-98HOLDER, HANDLE LWR$15.99$13.11Usually ships in 7-10 business days
895314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
992990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
1092990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1197014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1390179-25051-00NUT$36.99$28.853 In-Stock
1490209-10160-00

(replaces part #
90209-10021-00)

WASHER, SPEC''L SHAP$8.49$6.6210+ In-Stock
1590105-10006-00BOLT, FLANGE$12.49$9.7410+ In-Stock
16B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
17B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
1893501-04011-00BALL$9.49$7.4010+ In-Stock
