1975 Yamaha GT80/MX Kick Starter OEM Parts Diagram

Submodel GT80B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

KICK STARTER

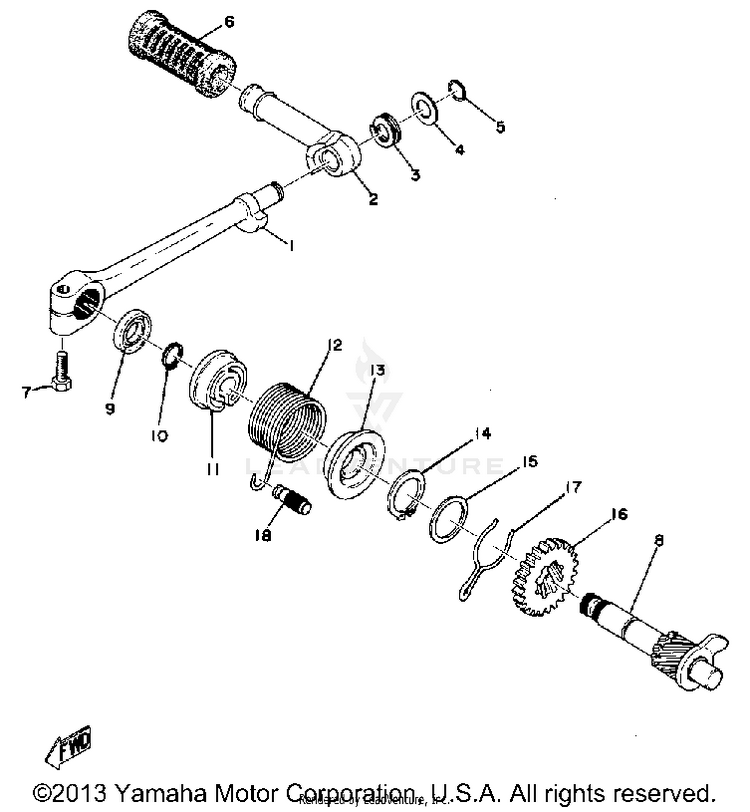

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-97017-06025-00

(replaces part #
97011-06025-00)

BOLT | MUST USE W/KICK CRANK: 367-01$4.55$3.9110+ In-Stock
13AY-15620-00-00KICK CRANK ASSEMBLY$122.99$95.93Usually ships in 7-10 business days
2214-15612-09-00LEVER, KICK$15.49$12.70Not Shipping
390504-18031-00SPRING, COMPRESSION$10.49$8.188 In-Stock
490209-10210-00

(replaces part #
90209-10108-00)

WASHER,SPEC'L SHAPE$2.35$2.12Not Shipping
593440-10028-00CIRCLIP, OUTER$2.55$2.30Not Shipping
6156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
797017-06020-00

(replaces part #
97011-06020-00)

BOLT | MUST USE W/KICK CRANK: 367-00$4.06$3.4910+ In-Stock
8353-15660-01-00KICK AXLE ASSEMBLY$119.99$93.59Usually ships in 7-10 business days
993109-15001-00OIL SEAL, SDO-TYPE$9.49$7.408 In-Stock
1099009-15400-00CIRCLIP (55X)$9.49$7.4010+ In-Stock
11132-15676-01-00COVER, SPRING$10.99$9.01Usually ships in 7-10 business days
1290508-26136-00SPRING, TORSION$16.49$12.86
13132-15664-01-00GUIDE, SPRING$11.99$9.83Usually ships in 7-10 business days
1493410-25017-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
1590201-253K0-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
16353-15641-00-00GEAR, KICK (24T)$64.99$50.69Usually ships in 7-10 business days
1790468-26038-00CLIP$7.99$7.19Usually ships in 7-10 business days
18248-15668-00-00STOPPER$8.49$6.6210+ In-Stock
