1975 Yamaha GT80/MX Tail Lamp OEM Parts Diagram

Submodel GT80B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

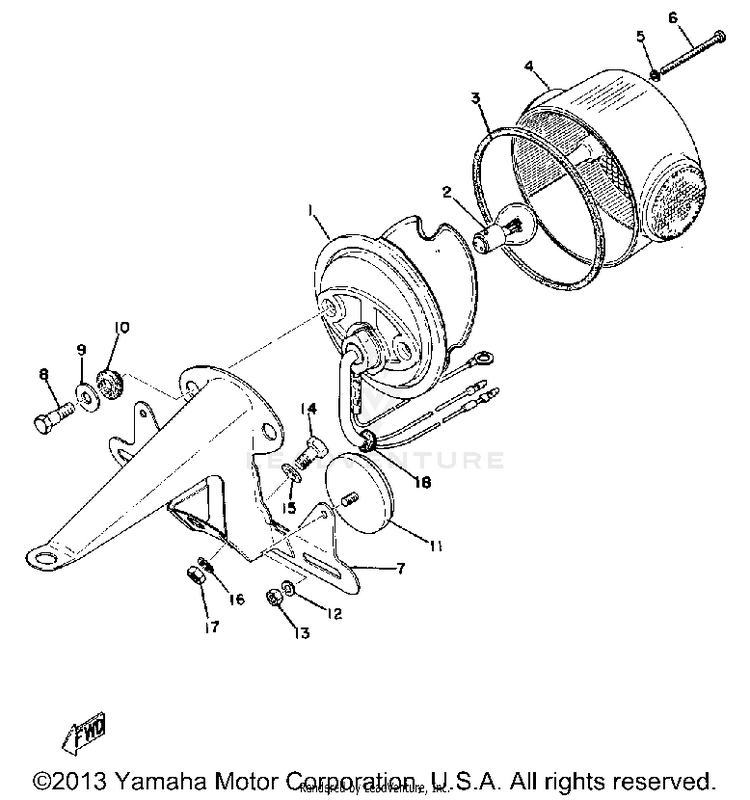

TAIL LAMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-368-84511-60-00BASE, TAILLIGHT$22.86$18.75Usually ships in 7-10 business days
1368-84510-61-00TAILLIGHT UNIT ASSEMBLY$74.99$58.49Usually ships in 7-10 business days
2122-84514-30-XX

(replaces part #
122-84514-30-00)

BULB 6V21CP(1154)$2.40$2.06Not Shipping
3275-84523-60-00GASKET, LENS$9.20$7.18Not Shipping
4341-84721-60-00LENS, TAILLIGHT$21.16$17.35Not Shipping
5341-84722-60-00WASHER$3.96$3.56Not Shipping
698580-04055-00SCREW, LENS FITTING$10.49$8.184 In-Stock
7338-84551-60-35BRACKET, LICENCE$31.56$25.88Not Shipping
8479-84526-00-00SCREW$3.95$3.56Not Shipping
92H7-84754-00-00WASHER, SPECIAL$11.99$9.83Usually ships in 7-10 business days
10275-84527-60-00DAMPER$6.68$6.01Not Shipping
11449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1395380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
1497013-06012-00BOLT$6.49$5.0610+ In-Stock
1592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1795380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1890480-12013-00GROMMET$9.49$7.403 In-Stock
