1976 Yamaha XT500 Cylinder OEM Parts Diagram

Submodel XT500C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

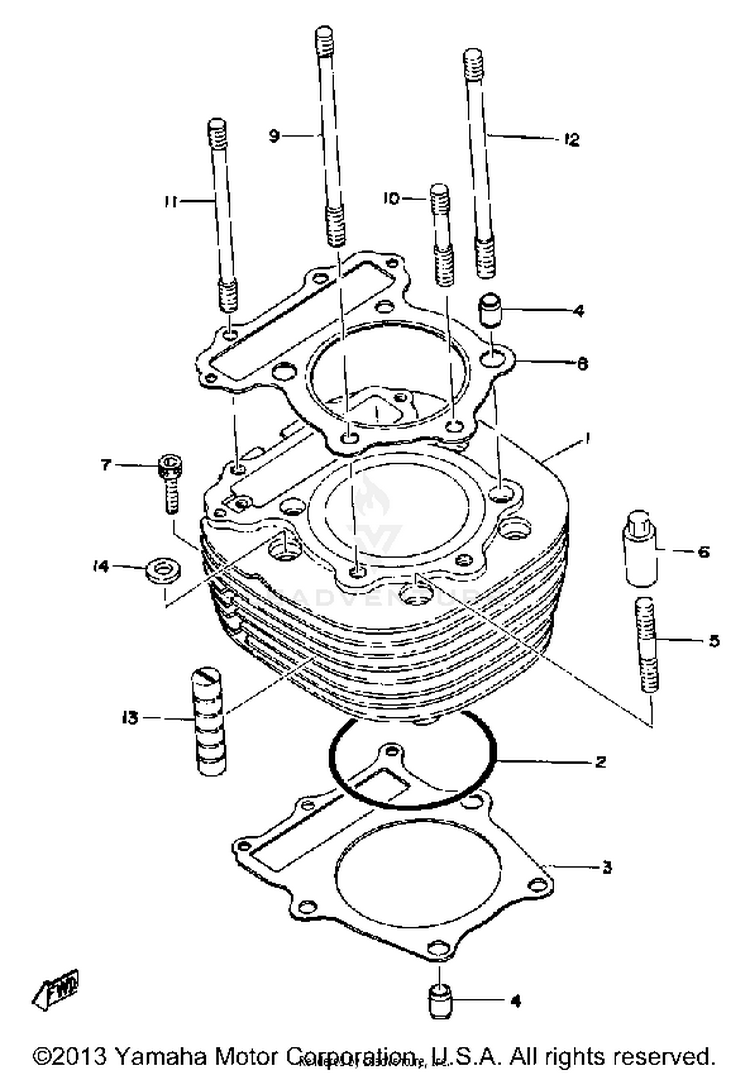

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1583-11310-00-00CYLINDER$605.99$472.67Usually ships in 7-10 business days
293210-92295-00O-RING$13.49$10.522 In-Stock
33HT-11351-00-00

(replaces part #
583-11351-00-00)

GSKT, CYLN DR$32.99$27.05Usually ships in 7-10 business days
499530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
590116-10087-00BOLT, STUD | M10-46L$19.49$15.981 In-Stock
690179-10021-00

(replaces part #
90179-10201-00)

NUT$28.99$22.616 In-Stock
790110-06138-00BOLT$6.49$5.0610+ In-Stock
82J2-11181-09-00GASKET, CYLINDER HEAD 1$124.99$97.49Usually ships in 7-10 business days
990116-10222-00BOLT, STUD | M10-163L$18.49$15.16Usually ships in 7-10 business days
1090116-10223-00BOLT, STUD | M10-68L$11.49$9.42Usually ships in 7-10 business days
1190116-08190-00BOLT, STUD | M8-143L$6.49$5.842 In-Stock
1290116-10225-00BOLT, STUD | M10-173L$20.99$17.21Usually ships in 7-10 business days
13583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
1490201-10590-00WASHER, PLATE$6.49$5.065 In-Stock
