1976 Yamaha XT500 Electrical OEM Parts Diagram

Submodel XT500C - 1976

Shop Aftermarket Parts

ELECTRICAL

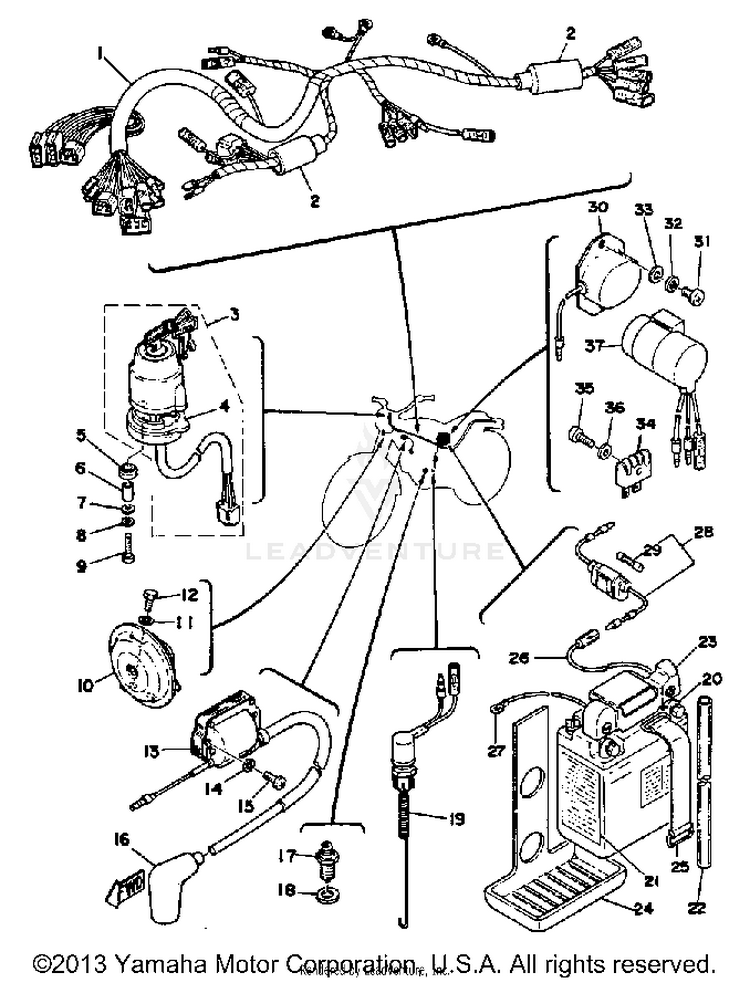

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11E6-82590-62-00WIRE HARNESS ASSEMBLY$78.99$61.61Usually ships in 7-10 business days
2538-82599-10-00COVER, CONNECTER$6.49$5.84Usually ships in 7-10 business days
31E6-82508-01-00MAIN SWITCH ASSEMBLY$68.99$53.81Not Shipping
4437-82555-00-00DAMPER, MAIN SWCH 1SWITCH 1$6.66$5.99Usually ships in 7-10 business days
51M1-82556-00-00DAMPER, STOPPER$6.99$6.29Not Shipping
6437-82516-00-00COLLAR, MAIN SWITCH$8.99$8.09Not Shipping
790201-05725-00

(replaces part #
90201-05031-00)

WASHER, PLATE$10.49$8.606 In-Stock
892990-05100-00WASHER, SPRING-$0.8310+ In-Stock
997885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
101N5-83371-20-00

(replaces part #
3Y1-83371-10-00)

HORN$84.99$66.29Not Shipping
1192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1297013-06012-00BOLT$6.49$5.0610+ In-Stock
13583-82310-50-00IGNITION COIL ASSEMBLY$185.99$145.07Not Shipping
1492990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1598580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1656J-82370-00-00PLUG CAP ASSY$70.99$55.372 In-Stock
174GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
18296-82543-00-00

(replaces part #
341-82543-00-00)

GASKET$5.99$5.39Usually ships in 7-10 business days
19371-82530-03-00STOP SWITCH ASSEMBLY$35.99$29.51Not Shipping
206N6-3B1Y0-00-00

(replaces part #
BTY-6N63B-10-00)

6N6-3B-1 YUASA BATTE | G.S.$48.99$43.90Not Shipping
2140A-82141-G0-00

(replaces part #
118-82141-09-00)

LABEL, BATTERY$0.85$0.76Not Shipping
2290445-084J0-00

(replaces part #
90445-08047-00)

PIPE$20.99$16.3710+ In-Stock
231E6-82129-00-00COVER, BATTERY$9.49$8.54Not Shipping
241E6-82122-01-00SEAT, BATTERY$43.99$36.07Usually ships in 7-10 business days
251E6-82131-00-00BAND, BATTERY$30.99$24.174 In-Stock
26J42-82318-00-00

(replaces part #
1E6-82115-01-00)

WIRE, SUB-LEAD$6.49$5.84Usually ships in 7-10 business days
275F7-82519-00-00WIRE, EARTH LEAD$5.49$4.94Usually ships in 7-10 business days
281E6-82150-00-00FUSE HOLDER ASSEMBLY | M6-011$28.99$23.77Not Shipping
291E6-82151-00-00FUSE (10A) | M6-011$8.49$7.64Usually ships in 7-10 business days
30443-81910-62-00

(replaces part #
1E6-81910-62-00)

VOLTAGE REG ASSEMBLY (498-81910$276.99$216.05Not Shipping
3197885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
3292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
3392990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
34353-81970-M2-00

(replaces part #
353-81970-63-00)

RECTIFIER ASSY$21.99$17.152 In-Stock
3597885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
3692990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
37438-83350-62-00FLASHER RELAY ASSEMBLY$158.99$124.01Not Shipping
