1976 Yamaha XT500 Headlight OEM Parts Diagram

Submodel XT500C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

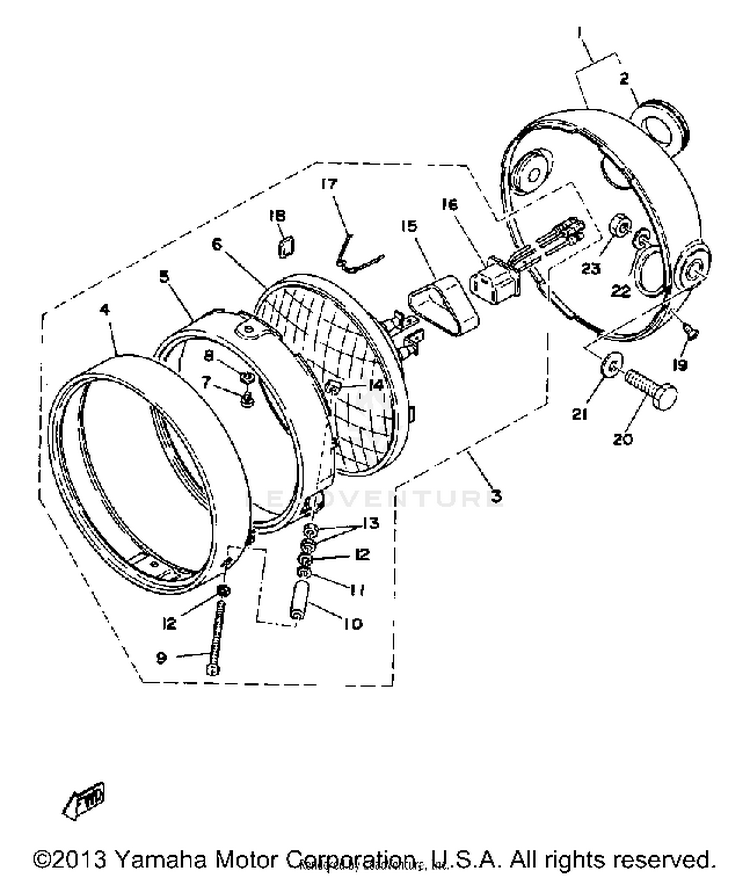

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11E6-84130-60-33BODY ASSEMBLY, HEADLIGHT | YAMAHA BLACK$36.74$30.13Usually ships in 7-10 business days
2214-84153-60-00GROMMET, WIRE HARNESS$8.49$6.623 In-Stock
4498-84115-60-00RIM, HEADLIGHT$78.99$61.61Not Shipping
5498-84195-60-00RING, RETAINING$45.99$37.71Usually ships in 7-10 business days
6498-84120-61-00LENS ASSEMBLY$88.99$69.41Not Shipping
7438-84194-60-00RING, MOUNTING$4.50$4.05Not Shipping
892990-05100-00WASHER, SPRING-$0.8310+ In-Stock
990157-04001-00SCREW, ADJUSTING$9.49$7.404 In-Stock
10438-84133-60-00COLLAR, SCREW$6.99$6.29Not Shipping
1192990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1292990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1395307-04600-00

(replaces part #
95301-04600-00)

NUT$9.49$8.545 In-Stock
14198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
15341-84397-61-00COVER, SOCKET$26.99$22.13Usually ships in 7-10 business days
16371-84312-60-00SOCKET$31.99$26.23Usually ships in 7-10 business days
171UY-84124-00-00

(replaces part #
507-84324-60-00)

SPRING, SET$8.49$7.646 In-Stock
18498-84128-60-00SPACER$21.59$17.70Usually ships in 7-10 business days
1990152-05005-00SCREW, COUNTERSUNK$4.65$4.002 In-Stock
2097013-08035-00

(replaces part #
97303-08035-00)

BOLT$6.49$5.0610+ In-Stock
2192990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
2292990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2395333-08600-00NUT$3.80$3.4710+ In-Stock
