1976 Yamaha XT500 Valve - Rocker Arm OEM Parts Diagram

Submodel XT500C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

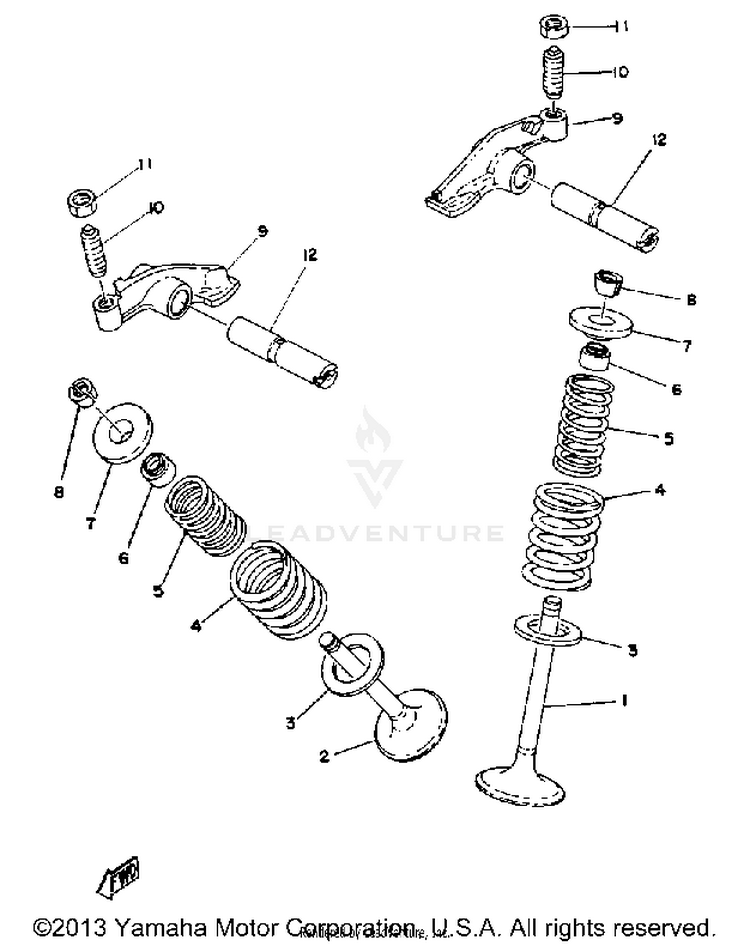

VALVE - ROCKER ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1583-12111-00-00VALVE, INTAKE$79.99$62.39Not Shipping
2583-12121-00-00VALVE, EXHAUST$166.99$130.25Usually ships in 7-10 business days
3256-12116-01-00SEAT, VALVE SPRING$11.49$9.42Not Shipping
490501-42377-00SPRING, COMPRESSION$5.82$5.24Usually ships in 7-10 business days
590501-29376-00SPRING, COMPRESSION$5.99$5.39Usually ships in 7-10 business days
6341-12119-02-00SEAL, VALVE STEM$19.99$15.5910+ In-Stock
7256-12117-02-00RETAINER, VALVE SPRING$17.49$14.34Usually ships in 7-10 business days
8341-12118-00-00LOCK, VALVE SPRING RETAINER$10.99$9.01Usually ships in 7-10 business days
9583-12151-00-00ARM, VALVE ROCKER$139.99$109.19Usually ships in 7-10 business days
103HT-12159-R0-00

(replaces part #
90149-08098-00)

SCREW, VALVE ADJUSTING$17.99$14.033 In-Stock
1190170-08173-00NUT$9.49$8.546 In-Stock
12583-12156-02-00

(replaces part #
583-12156-01-00)

SHAFT, ROCKER 2$50.99$39.77Usually ships in 7-10 business days
