1977 Yamaha TY250 Crankcase OEM Parts Diagram

Submodel TY250D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

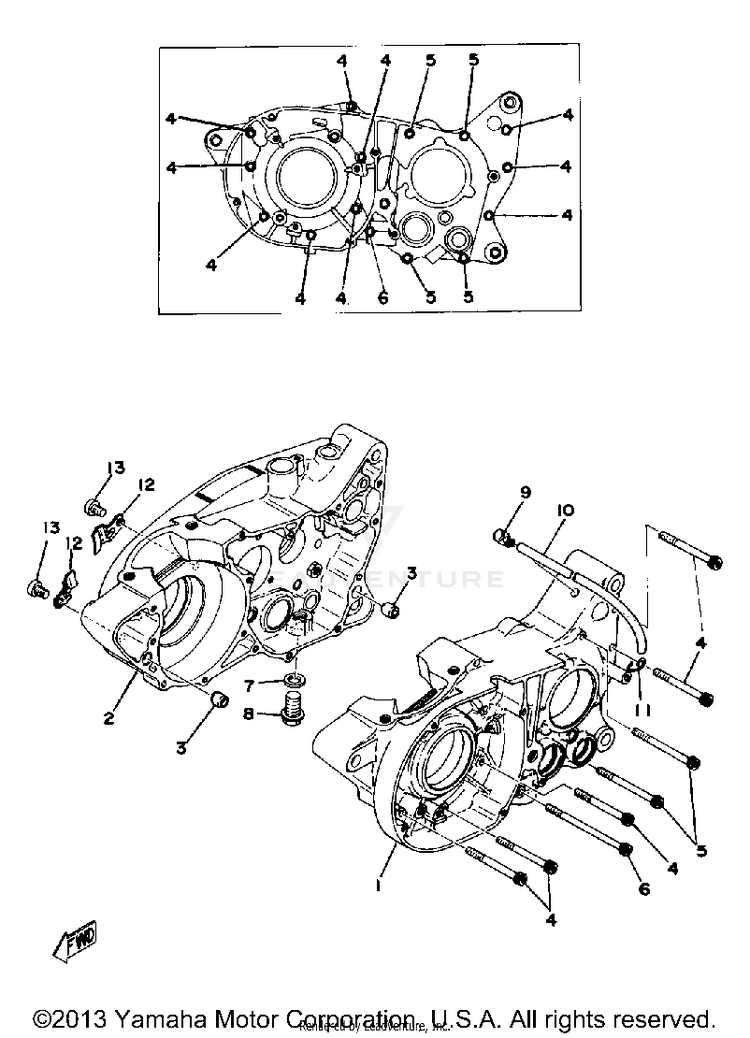

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1434-15111-02-00CRANKCASE 1$102.99$80.33Usually ships in 7-10 business days
2434-15121-01-00CRANKCASE 2$192.99$150.53Usually ships in 7-10 business days
399530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
491317-06065-00

(replaces part #
91316-06065-00)

BOLT$4.05$3.4810+ In-Stock
591317-06075-00

(replaces part #
91316-06075-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.066 In-Stock
691316-06100-00BOLT, SOCKET HEAD$10.49$8.60Not Shipping
74F4-14766-00-00

(replaces part #
137-15353-00-00)

GASKET, DRAIN$7.49$5.849 In-Stock
890109-14385-00BOLT (90340-14010)$18.49$14.425 In-Stock
9583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
1090445-07MF1-00

(replaces part #
90445-07177-00)

HOSE$8.49$7.64Usually ships in 7-10 business days
1190465-20035-00CLAMP$5.99$5.39Usually ships in 7-10 business days
12434-15118-00-00HOLDER$7.49$6.74Not Shipping
1398580-08012-00

(replaces part #
98501-08012-00)

SCREW, PAN HEAD (9806-08012)$8.49$7.64Not Shipping
