1977 Yamaha TY250 Flywheel Magneto OEM Parts Diagram

Submodel TY250D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

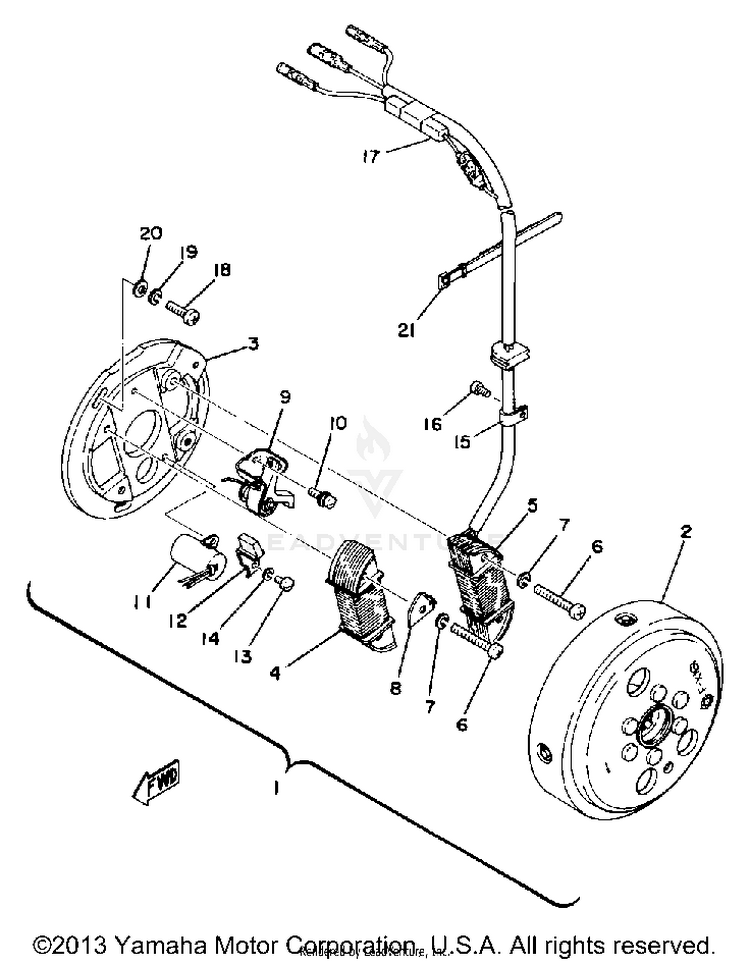

FLYWHEEL MAGNETO

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1493-81300-11-00FLYWHL MAGNETO ASSEMBLY$336.99$270.02Usually ships in 7-10 business days
2493-81350-10-00ROTOR ASSEMBLY$166.99$130.25Usually ships in 7-10 business days
3493-81309-11-00BASE, MAGNETO$17.04$13.97Usually ships in 7-10 business days
4461-81312-10-00COIL, SOURCE$226.99$177.05Usually ships in 7-10 business days
5493-81313-10-00NO LONGER AVAILABLE$39.54$35.75Usually ships in 7-10 business days
698507-05035-00

(replaces part #
98501-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
8434-81332-10-00PLATE, TIMING$1.38$1.24Usually ships in 7-10 business days
9434-81321-10-00CONTACT BRKR ASSEMBLY$56.99$46.46Not Shipping
10110-81346-21-00SCREW, PAN HEAD$5.99$4.676 In-Stock
11207-81326-90-00CONDENSER 2$25.99$21.31Not Shipping
12207-81331-10-00LUBRICATOR$6.99$6.29Not Shipping
1398580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1492990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
15363-85528-10-00CLAMP, LEAD$0.99$0.89Usually ships in 7-10 business days
1698580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
17296-81980-09-00DIODE$45.40$37.23Usually ships in 7-10 business days
1898580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2092990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
21437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
