1977 Yamaha TY250 Intake OEM Parts Diagram

Submodel TY250D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

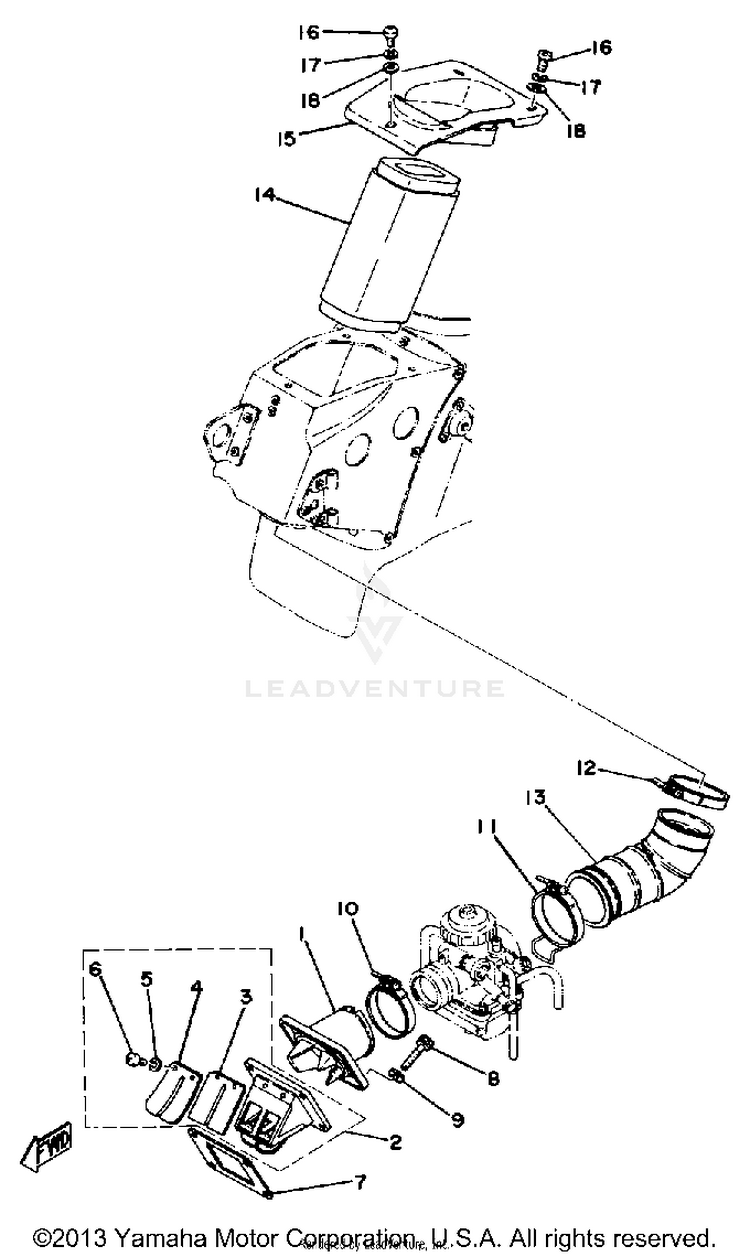

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1434-13565-00-00JOINT, CARBURETOR$32.12$26.34Not Shipping
2345-13610-20-00

(replaces part #
558-13610-00-00)

REED VALVE ASY$247.99$193.43Usually ships in 7-10 business days
3345-13613-70-00REED, VALVE$78.99$61.61Usually ships in 7-10 business days
4345-13616-70-00STOPPER, REED VALVE$29.99$27.46Not Shipping
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
698580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
787A-13621-00-00GASKET, VALVE SEAT$9.49$7.409 In-Stock
891317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
992990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1090460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
1190460-49075-00CLAMP, HOSE$7.42$6.68Usually ships in 7-10 business days
1290460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
13493-14453-01-00JOINT, AIR CLNR 1$10.40$8.11Not Shipping
14434-14451-00-00ELEMENT, AIR CLNR$38.79$30.30Not Shipping
15434-14412-00-00CAP, CLEANER CASE 1$11.24$9.22Not Shipping
1697885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1892990-05200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
