1977 Yamaha TY250 Seat OEM Parts Diagram

Submodel TY250D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

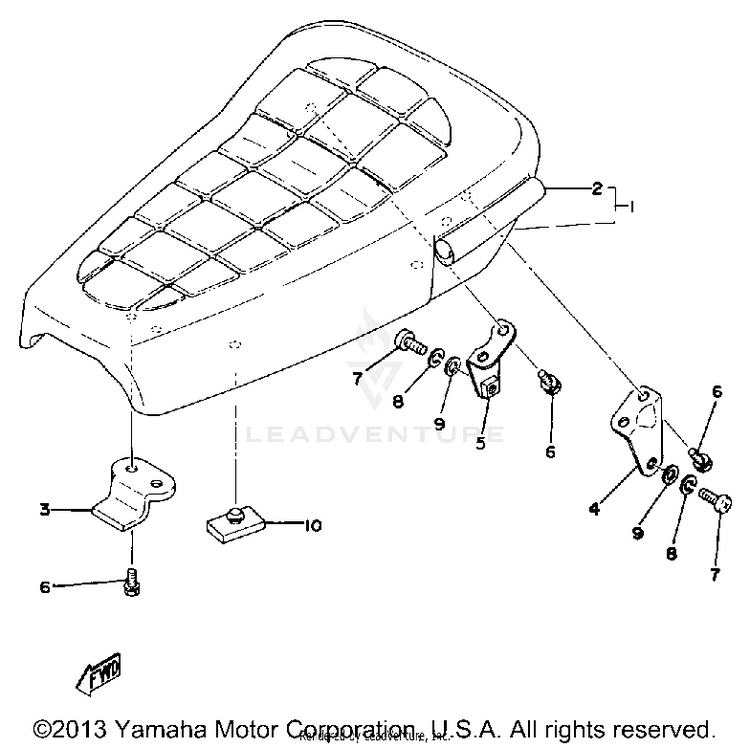

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1493-24710-00-00SINGLE SEAT ASSEMBLY$150.99$117.77Not Shipping
2493-24711-00-00COVER, SINGLE SEAT$17.80$14.60Not Shipping
32Y0-24748-00-00BRACKET, SEAT$12.49$9.74Not Shipping
4493-24738-00-00BRACKET, SEAT$6.04$5.44Not Shipping
5493-24748-00-00BRACKET, SEAT$4.84$4.36Not Shipping
690101-06304-00BOLT$8.49$6.624 In-Stock
798507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
992990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
10509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
