1978 Yamaha XT500 Generator OEM Parts Diagram

Submodel XT500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

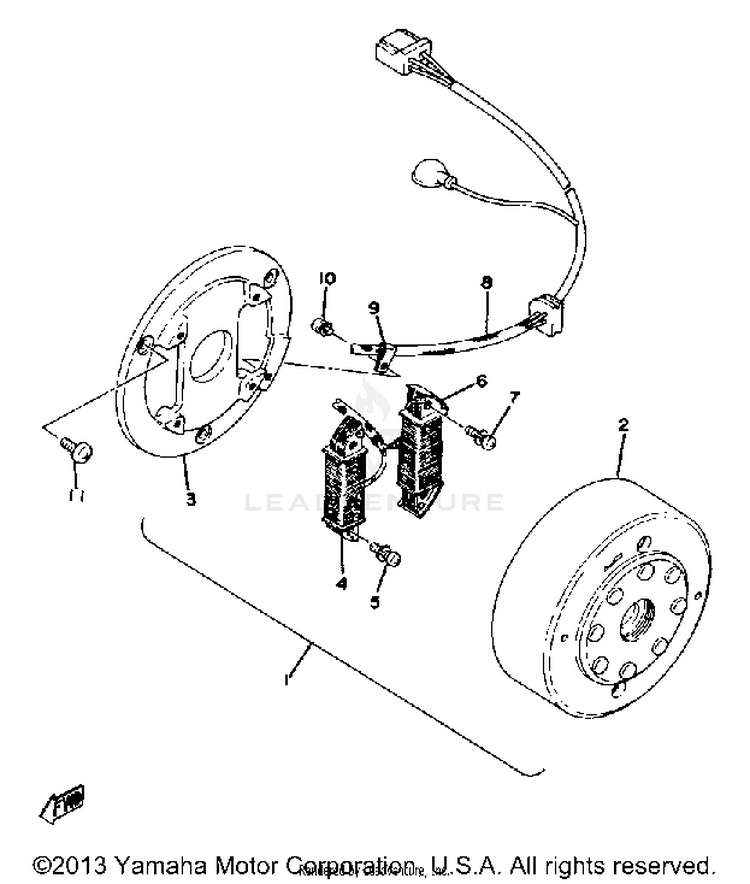

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12H0-81300-50-00FLYWHL MAGNETO ASSEMBLY$292.99$228.53Usually ships in 7-10 business days
22H0-81350-50-00ROTOR ASSEMBLY$206.99$161.45Usually ships in 7-10 business days
3583-81309-50-00BASE, MAGNETO$28.86$23.67Usually ships in 7-10 business days
4583-81311-50-00COIL, IGNITION 1$139.99$109.19Not Shipping
5583-81345-50-00SCREW, PAN HEAD (5.22)$5.00$4.50Not Shipping
62H0-81313-50-00COIL, LIGHTING 1$72.05$56.20Usually ships in 7-10 business days
71E6-81345-50-00SCREW, PAN HEAD$0.80$0.72Usually ships in 7-10 business days
82H0-81315-50-00LEAD WIRE ASSEMBLY$14.20$11.64Usually ships in 7-10 business days
91E6-81328-50-00CLAMP$0.62$0.56Usually ships in 7-10 business days
10583-81346-50-00SCREW, PAN HEAD$1.98$1.78Not Shipping
1198507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
