1978 Yamaha XT500 Seat OEM Parts Diagram

Submodel XT500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

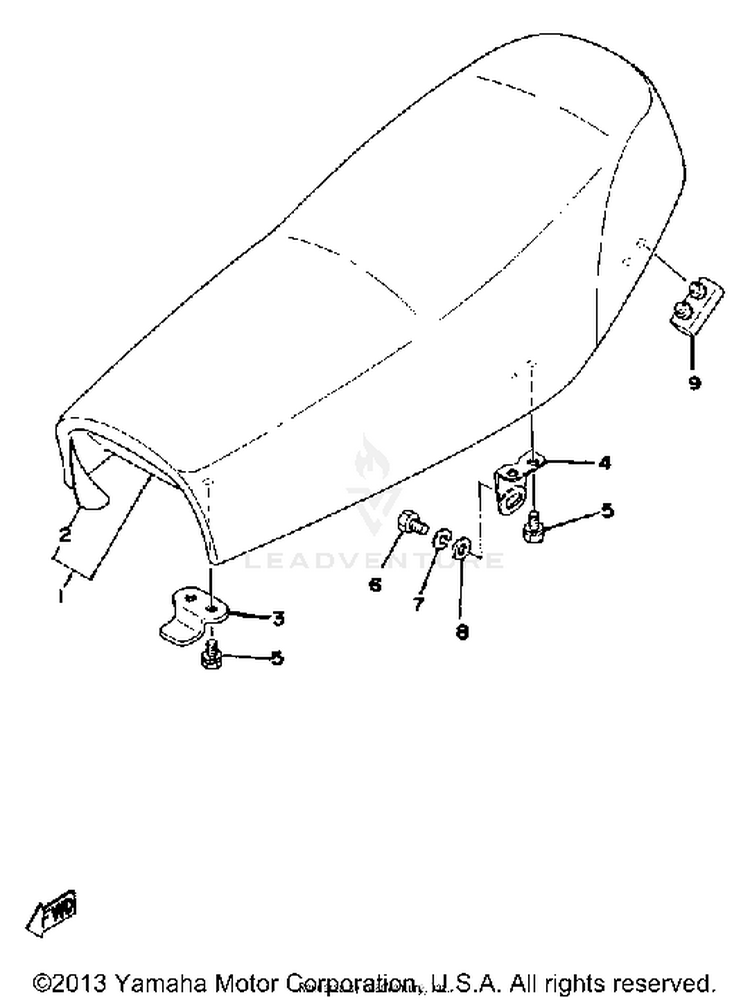

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12H0-W2472-00-00DOUBLE SEAT ASSEMBLY$116.99$91.25Not Shipping
22H0-24731-00-00COVER, DOUBLE SEAT (1E6-24731$98.99$77.21Not Shipping
32Y0-24748-00-00BRACKET, SEAT$12.49$9.74Not Shipping
41T1-24738-00-00BRACKET, SEAT$14.49$11.88Not Shipping
590101-06304-00BOLT$8.49$6.624 In-Stock
697013-08016-00

(replaces part #
97313-08016-00)

BOLT-$1.7810+ In-Stock
792990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
892990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
9583-24724-00-00DAMPER, SEAT$17.99$14.75Not Shipping
