1978 Yamaha XT500 Meter OEM Parts Diagram

Submodel XT500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

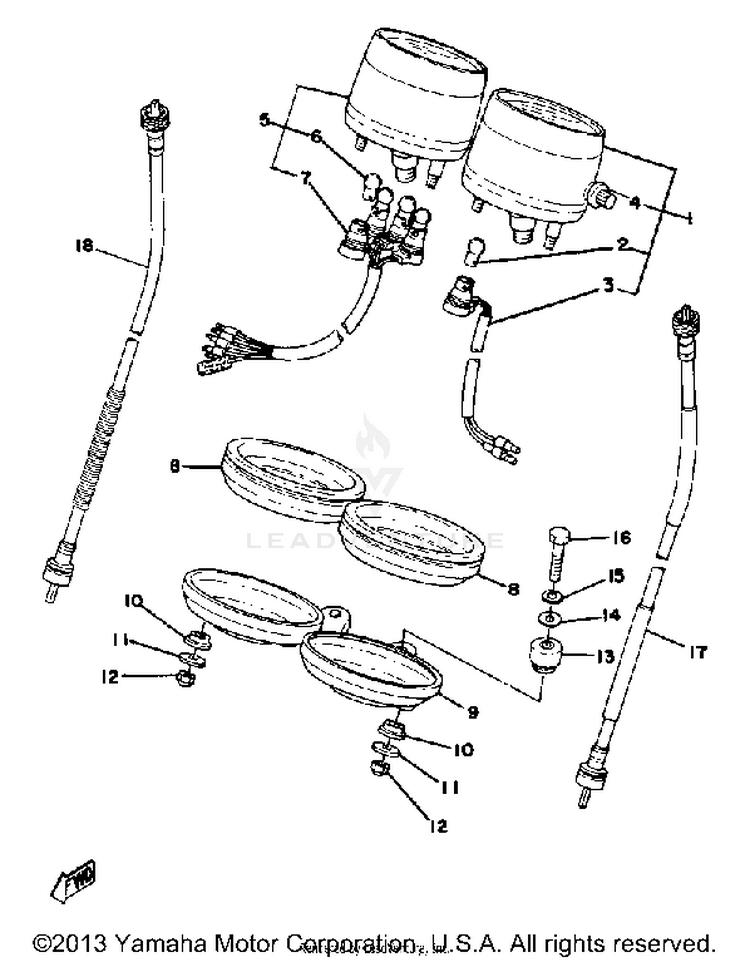

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11E6-83570-61-00SPEEDOMETER ASSEMBLY (1E6-83570 | MILE/H$150.99$117.77Not Shipping
2122-83516-10-XX

(replaces part #
122-83516-10-00)

BULB$2.40$2.16Usually ships in 7-10 business days
31E6-83536-60-00SOCKET, METER$6.66$5.99Usually ships in 7-10 business days
41E6-83578-60-00KNOB, TRIP METER | FOR MILE/H$5.99$5.39Not Shipping
51E6-83540-F1-00TACHOMETER ASSEMBLY (1E6-83540-$126.99$99.05Not Shipping
6122-83516-10-XX

(replaces part #
122-83516-10-00)

BULB$2.40$2.16Usually ships in 7-10 business days
71E6-83520-60-00SOCKET CORD ASSEMBLY$15.90$13.04Usually ships in 7-10 business days
81E6-83523-60-00DAMPER$23.99$19.67Usually ships in 7-10 business days
91E6-83519-60-00BRACKET, METER$103.99$81.11Usually ships in 7-10 business days
101E6-83526-60-00DAMPER 2$12.99$10.65Usually ships in 7-10 business days
1190201-05032-00

(replaces part #
90201-052E2-00)

WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
1295303-05800-00NUT (CROWN)$1.30$1.17Not Shipping
131E6-23445-00-00DAMPER$5.49$4.94Usually ships in 7-10 business days
1490201-06049-00

(replaces part #
90201-062G3-00)

WASHER, PLATE$3.75$3.38Usually ships in 7-10 business days
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1697014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
171JN-83550-02-00

(replaces part #
1JN-83550-01-00)

SPEEDOMETER CABLE AS$45.99$35.875 In-Stock
181E6-83560-52-00TACHOMETER CABLE$55.99$43.67Usually ships in 7-10 business days
