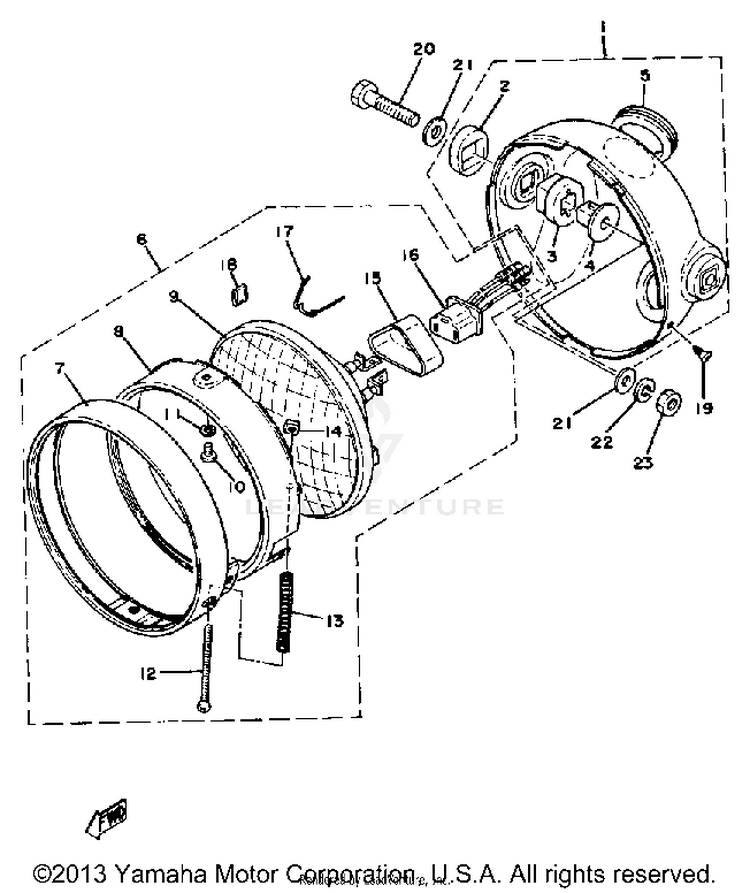

1978 Yamaha XT500 Headlight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1E6-84130-60-33	BODY ASSEMBLY, HEADLIGHT \| YAMAHA BLACK	$36.74	$30.13	Usually ships in 7-10 business days
2	498-84164-60-00	DAMPER	$7.49	$6.74	2 In-Stock
3	498-84163-60-00	DAMPER	$8.49	$7.64	Usually ships in 7-10 business days
4	498-84145-60-00	COLLAR, BODY FITTING	$7.49	$6.74	Usually ships in 7-10 business days
5	214-84153-60-00	GROMMET, WIRE HARNESS	$8.49	$6.62	3 In-Stock
7	498-84115-60-00	RIM, HEADLIGHT	$78.99	$61.61	Not Shipping
8	498-84195-60-00	RING, RETAINING	$45.99	$37.71	Usually ships in 7-10 business days
9	2A6-84120-60-00	LENS ASSEMBLY	$84.99	$66.29	Not Shipping
10	438-84194-60-00	RING, MOUNTING	$4.50	$4.05	Not Shipping
11	92990-05100-00	WASHER, SPRING	-	$0.83	10+ In-Stock
12	447-84331-61-00	SCREW, RIM ADJUSTING	$7.99	$7.19	Usually ships in 7-10 business days
13	447-84332-60-00	SPRING, SCREW	$11.49	$9.42	Usually ships in 7-10 business days
14	198-84334-60-00	NUT, ADJUSTING	$8.49	$6.62	5 In-Stock
15	341-84397-61-00	COVER, SOCKET	$26.99	$22.13	Usually ships in 7-10 business days
16	371-84312-60-00	SOCKET	$31.99	$26.23	Usually ships in 7-10 business days
17	1M1-84124-60-00	SPRING, SET	$9.49	$8.54	Usually ships in 7-10 business days
18	498-84128-60-00	SPACER	$21.59	$17.70	Usually ships in 7-10 business days
19	90152-05005-00	SCREW, COUNTERSUNK	$4.65	$4.00	2 In-Stock
20	97014-08040-00 (replaces part # 97313-08040-00)	BOLT, HEXAGON	$8.49	$7.64	3 In-Stock
21	92990-08200-00	WASHER, PLAIN	$3.05	$2.62	10+ In-Stock
22	92990-08100-00	WASHER, SPRING	$5.60	$4.37	10+ In-Stock
23	95333-08600-00	NUT	$3.80	$3.47	10+ In-Stock
