1978 Yamaha YZ80 Frame - Side Cover Yz80d OEM Parts Diagram

Submodel YZ80E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

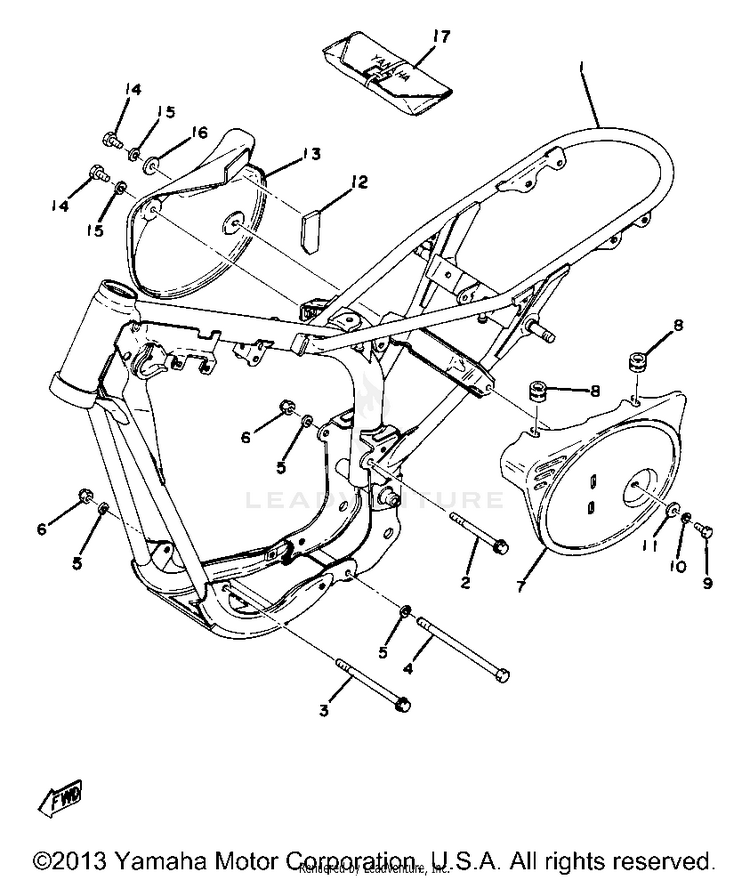

FRAME - SIDE COVER YZ80D

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T0-21110-00-33FRAME | YAMAHA BLK$280.99$240.63Usually ships in 7-10 business days
295817-08090-00

(replaces part #
95811-08090-00)

BOLT, FLANGE$5.99$4.674 In-Stock
395817-08120-00

(replaces part #
95811-08120-00)

BOLT, FLANGE | YAMAHA BLK$5.49$4.284 In-Stock
490109-08387-00BOLT$8.99$8.09Not Shipping
592990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
690185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
7598-21711-00-00COVER, SIDE 1 | COMP. YEL.LOW GLOSS BLK$48.99$40.17Not Shipping
890480-12053-00GROMMET$8.49$6.6210+ In-Stock
997D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1190201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
12598-21732-00-00SEAL 1$2.77$2.49Usually ships in 7-10 business days
13598-21721-00-00COVER, SIDE 2 | COMP. YELLOW GLOSS BLK$48.99$40.17Not Shipping
1497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
17462-28100-11-00TOOL KIT$6.04$5.44Usually ships in 7-10 business days
