1978 Yamaha YZ80 Front Fork Yz80d OEM Parts Diagram

Submodel YZ80E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK YZ80D

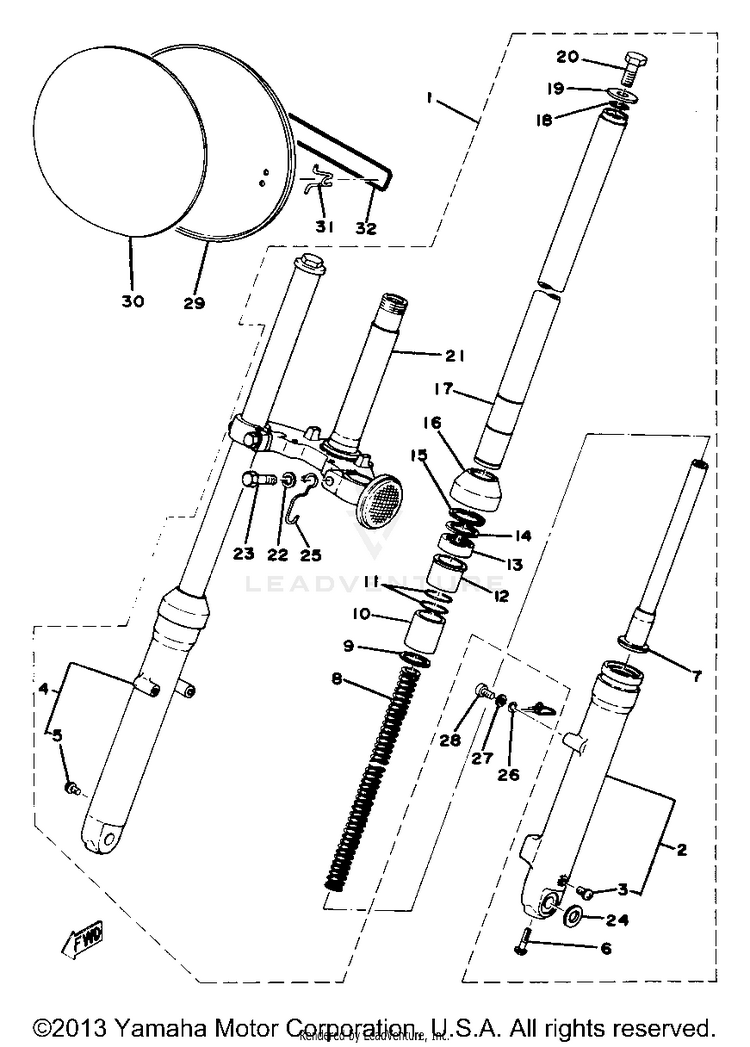

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1T0-23141-10-00SPRING, FRONT FORK | ALT. PRT.$5.86$5.27Usually ships in 7-10 business days
11T0-23101-00-00FRONT FORK ASSEMBLY$148.99$116.21Not Shipping
21T0-23126-00-00TUBE, OUTER 1$56.99$44.45Usually ships in 7-10 business days
3451-23119-01-00PLUG, DRAIN$5.99$5.39Usually ships in 7-10 business days
41T0-23136-00-00TUBE, OUTER 2$52.99$41.33Usually ships in 7-10 business days
5451-23119-01-00PLUG, DRAIN$5.99$5.39Usually ships in 7-10 business days
697885-06025-00

(replaces part #
98580-06025-00)

SCREW, PAN HEAD$5.49$4.94Usually ships in 7-10 business days
7462-23170-02-00CYLINDER COMP., FRONT FORK$87.99$68.63Usually ships in 7-10 business days
81T0-23141-00-00SPRING, FRONT FORK$8.46$7.61Usually ships in 7-10 business days
9462-23183-02-00CIRCLIP$6.99$6.29Usually ships in 7-10 business days
10462-23171-02-00PISTON, FRONT FORK$25.99$21.31Not Shipping
11462-23157-02-00RING, PISTON$5.49$4.94Not Shipping
12462-23125-02-00METAL, SLIDE 1$14.49$11.88Not Shipping
1393110-27010-00

(replaces part #
462-23145-02-00)

OIL SEAL (5R6)$29.99$23.394 In-Stock
14462-23146-02-00WASHER, OIL SEAL$4.95$4.46Not Shipping
15462-23156-02-00CLIP, OIL SEAL$9.49$8.54Not Shipping
16462-23144-02-00SEAL, DUST$17.99$14.75Not Shipping
171T0-23124-00-00TUBE, INNER 1$51.36$40.06Not Shipping
18462-23114-02-00GASKET$6.99$6.29Not Shipping
19276-23112-50-00WASHER, CAP$16.99$13.93Usually ships in 7-10 business days
20205-23111-40-00BOLT, CAP$11.99$9.83Usually ships in 7-10 business days
21598-23340-00-00UNDER BRACKET$60.79$47.42Usually ships in 7-10 business days
2292990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
23451-23346-01-00BOLT 1$11.99$9.834 In-Stock
2492990-12200-00WASHER, PLAIN$9.49$7.406 In-Stock
25434-23319-00-00HOLDER, CABLE 2$4.15$3.74Not Shipping
26462-23318-00-00HOLDER, CABLE 1$1.98$1.78Not Shipping
2790201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
2897885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
29598-23485-00-00PLATE, NUMBER$12.52$10.27Not Shipping
30462-23395-00-00EMBLEM$4.56$4.10Not Shipping
31431-23486-02-00STAY, PLATE$5.99$4.67Not Shipping
32288-23489-00-00BAND$4.00$3.60Not Shipping
