1978 Yamaha YZ80 Intake Yz80e OEM Parts Diagram

Submodel YZ80E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE YZ80E

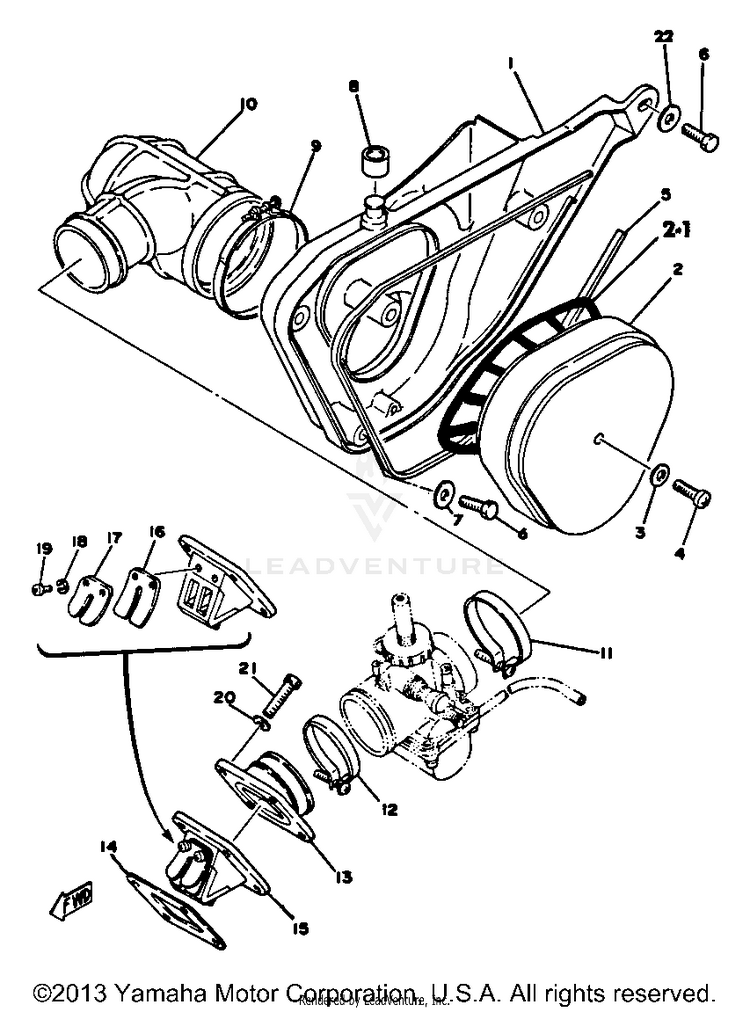

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2J5-14458-00-00GUIDE, ELEMENT$3.96$3.56Not Shipping
12J5-14411-00-00CASE, AIR CLEANER 1$14.42$11.82Not Shipping
22J5-14451-09-00ELEMENT, AIR CLNR (2J5-14451-00$27.99$22.95Not Shipping
390201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
551Y-14462-00-00

(replaces part #
3V6-14416-00-00)

SEAL$19.99$15.597 In-Stock
697017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
790201-06049-00

(replaces part #
90201-062G3-00)

WASHER, PLATE$3.75$3.38Usually ships in 7-10 business days
851Y-14462-00-00

(replaces part #
3V6-14416-00-00)

SEAL$19.99$15.597 In-Stock
990450-75002-00

(replaces part #
90460-75020-00)

HOSE CLAMP ASSY$12.49$9.748 In-Stock
102J5-14453-00-00JOINT, AIR CLNR 1$21.95$18.00Not Shipping
1190460-51059-00CLAMP, HOSE$18.49$14.4210+ In-Stock
1290460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
131T0-13565-00-00NO LONGER AVAILABLE$19.72$16.17Not Shipping
1487A-13621-00-00GASKET, VALVE SEAT$9.49$7.409 In-Stock
15345-13610-20-00

(replaces part #
558-13610-00-00)

REED VALVE ASY$247.99$193.43Usually ships in 7-10 business days
16345-13613-70-00REED, VALVE$78.99$61.61Usually ships in 7-10 business days
17345-13616-70-00

(replaces part #
558-13616-00-00)

STOPPER, REED VALVE$29.99$27.46Not Shipping
1892990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
1998580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
2090201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
2197017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
2290201-05067-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
