1978 Yamaha YZ80 Front Wheel Yz80d OEM Parts Diagram

Submodel YZ80E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

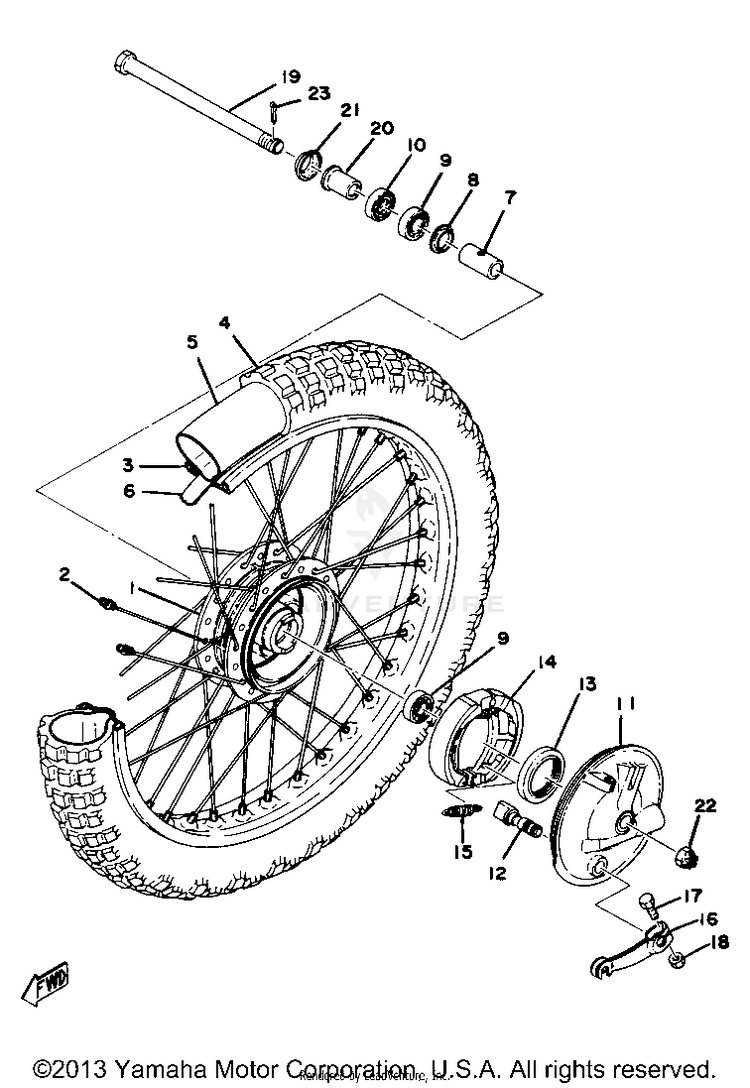

FRONT WHEEL YZ80D

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-462-25118-00-00COVER, HUB DUST$17.99$14.03Not Shipping
1462-25111-01-98HUB, FRONT | LOW GLOS BLK$131.99$102.95Usually ships in 7-10 business days
2462-25104-00-00SPOKE SET, FRONT$34.99$28.69Not Shipping
394414-16125-00RIM 1.40X16$34.99$28.69Not Shipping
494125-16145-00250X16 IRC TG$15.98$14.03Not Shipping
594225-16048-00TUBE 250X16$7.99$7.19Not Shipping
694330-16058-00BAND, RIM (1.60-16)$22.99$18.854 In-Stock
790560-12138-00

(replaces part #
90560-12261-00)

SPACER$17.49$14.34Usually ships in 7-10 business days
8462-25115-00-00FLANGE, SPACER 1$4.58$4.12Not Shipping
993306-00105-00BEARING$33.99$26.5110+ In-Stock
1093106-18013-00OIL SEAL$12.49$9.742 In-Stock
11462-25121-00-98PLATE, BRAKE SHOE | LOW GLOS BLK$53.10$41.42Usually ships in 7-10 business days
121YT-25351-00-00CAMSHAFT$23.99$19.67Not Shipping
1393106-40001-00

(replaces part #
93106-40012-00)

OIL SEAL$13.49$10.522 In-Stock
14451-W2535-00-00BRAKESHOE SET-2PCS$18.49$15.16Not Shipping
1590506-14081-00SPRING, TENSION$9.49$7.4010+ In-Stock
16451-25155-00-00LEVER, CAMSHAFT 1$41.99$32.754 In-Stock
1790101-06291-00BOLT$9.49$7.403 In-Stock
1895380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1990102-12015-00BOLT, WITH HOLE$17.49$14.34Usually ships in 7-10 business days
2090387-12265-00COLLAR (183-25183-00)$16.49$13.521 In-Stock
2290171-12005-00NUT, CASTLE$10.49$8.187 In-Stock
2391490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
