1981 Yamaha DT175 Crankcase OEM Parts Diagram

Submodel DT175H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

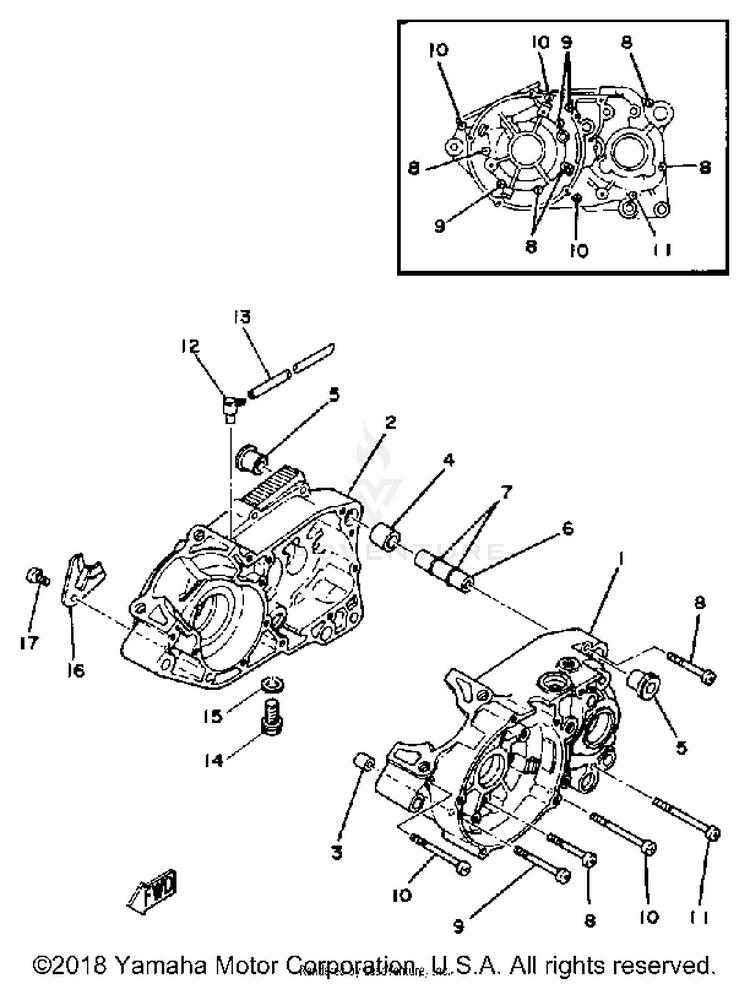

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12A6-15111-02-00CRANKCASE 1$135.99$106.07Not Shipping
22A6-15121-01-00CRANKCASE 2$188.99$147.41Usually ships in 7-10 business days
399530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
499530-20020-00

(replaces part #
99510-20020-00)

PIN, DOWEL$2.55$2.30Not Shipping
590388-08003-00

(replaces part #
328-15316-00-00)

Damper$19.49$15.206 In-Stock
6401-15317-00-00SPACER, ENGINE MOUNT$15.49$12.70Usually ships in 7-10 business days
793210-11073-00O-RING$8.49$6.6210+ In-Stock
898580-06550-00SCREW, PAN HEAD$9.49$7.409 In-Stock
998580-06560-00

(replaces part #
92580-06560-00)

SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
1098580-06570-00

(replaces part #
98501-06070-00)

SCREW, PAN HEAD$20.99$16.372 In-Stock
1198580-06575-00

(replaces part #
98501-06075-00)

SCREW, PAN HEAD$13.49$11.06Usually ships in 7-10 business days
125UG-15371-00-00

(replaces part #
2N4-15371-00-00)

BREATHER$44.99$35.092 In-Stock
1390445-072G8-00

(replaces part #
90445-07340-00)

HOSE (L310)$32.99$25.734 In-Stock
1490340-12005-00PLUG, STRAIGHT SCREW$9.49$7.406 In-Stock
1590430-12207-00GASKET$8.49$6.6210+ In-Stock
16304-15128-00-00HOLDER$7.49$6.74Usually ships in 7-10 business days
1798507-08010-00

(replaces part #
92501-08010-00)

SCREW, PAN HEAD$9.49$7.406 In-Stock
