1981 Yamaha DT175 Shift Shaft - Pedal OEM Parts Diagram

Submodel DT175H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

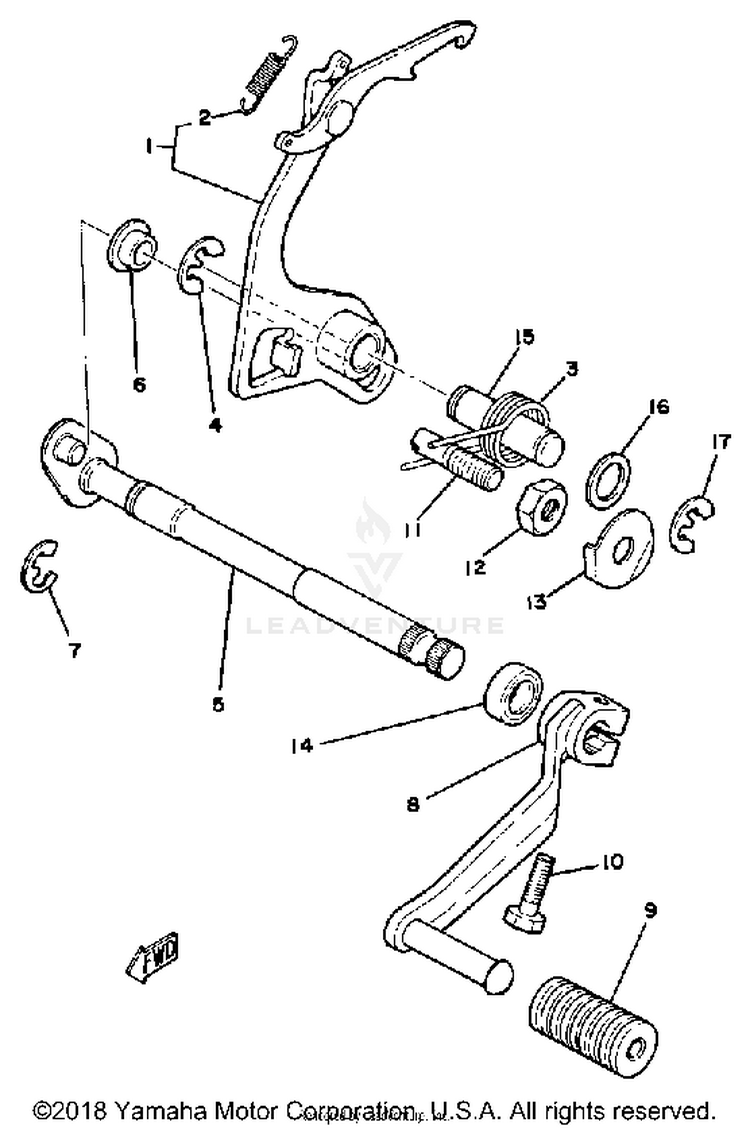

SHIFT SHAFT - PEDAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14F2-18120-00-00SHIFT LEVER ASSEMBLY (2A6-18120$45.99$37.71Usually ships in 7-10 business days
290506-08155-00SPRING, TENSION$11.49$9.42Usually ships in 7-10 business days
390508-32349-00SPRING, TORSION$11.49$9.42Usually ships in 7-10 business days
499006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
51W1-18101-03-00SHIFT SHAFT ASSEMBLY 1$80.99$63.17Not Shipping
6401-18178-00-00ROLLER, SHIFT LEVER$21.99$18.03Usually ships in 7-10 business days
799006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
82A6-18110-00-00

(replaces part #
2A6-18111-00-00)

SHIFT PEDAL ASSY$45.99$35.873 In-Stock
9132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
1097017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
1190149-08111-00SCREW, SPECL SHAPE$4.40$3.96Usually ships in 7-10 business days
1290170-08193-00

(replaces part #
90170-08029-00)

NUT, HEXAGON$4.65$4.0010+ In-Stock
1390215-08014-00WASHER, LOCK$6.49$5.061 In-Stock
1493101-12173-00

(replaces part #
93101-12060-00)

OIL SEAL$14.49$11.3010+ In-Stock
151W1-18197-01-00SHAFT$5.99$5.39Usually ships in 7-10 business days
1690201-12M34-00WASHER, PLATE$3.90$3.35
1799006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
