1981 Yamaha DT175 Fuel Tank OEM Parts Diagram

Submodel DT175H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

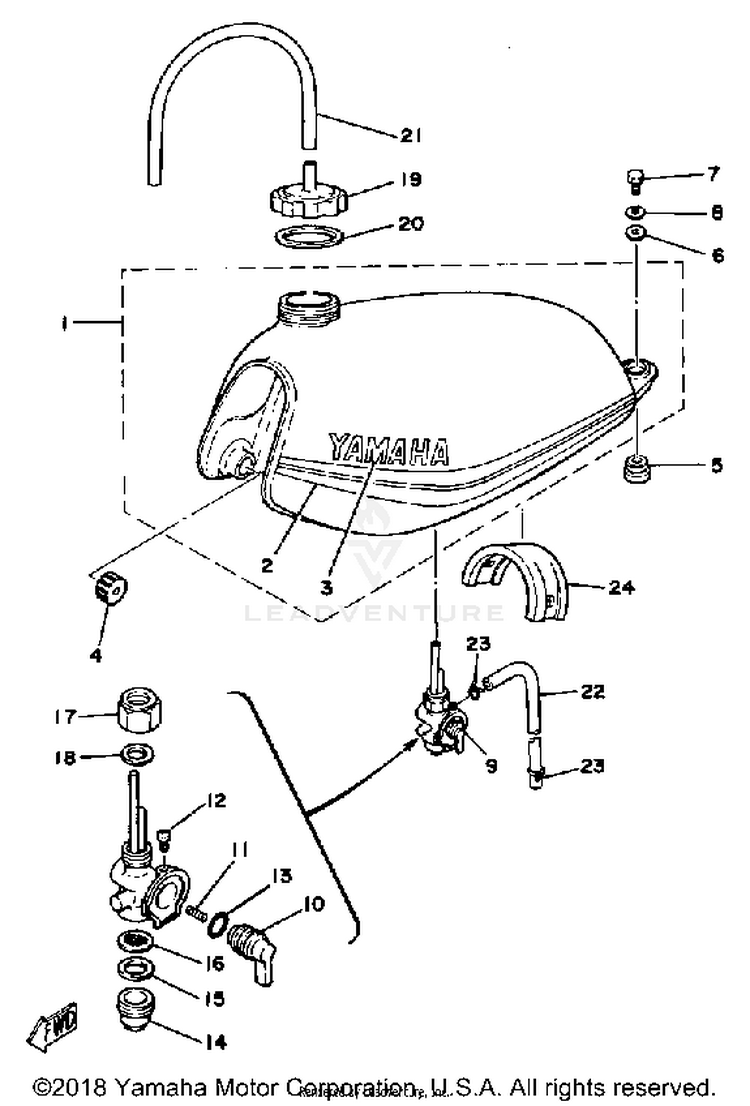

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12N4-24110-Y0-03FUEL TANK | CHAPPY RED$380.99$297.17Not Shipping
23J1-24240-20-00GRAPHIC SET$38.99$31.97Usually ships in 7-10 business days
399244-00120-00

(replaces part #
388-24161-00-00)

EMBLEM, YAMAHA$18.49$14.425 In-Stock
43TB-24181-00-00

(replaces part #
278-24181-00-00)

DAMPER, LOCATING 1$15.49$12.0810+ In-Stock
590480-22231-00GROMMET$6.99$5.45Not Shipping
690201-06086-00

(replaces part #
90201-06073-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
797013-06012-00BOLT$6.49$5.0610+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
9357-24500-20-00

(replaces part #
304-24500-12-00)

FUEL COCK ASSY 1$127.99$99.834 In-Stock
10357-24524-10-00LEVER, COCK$4.84$4.36Not Shipping
11357-24529-10-00SPRING$2.37$2.13Not Shipping
122N3-24535-00-00SCREW, LVR FITTING$4.50$4.05Not Shipping
132N3-24528-00-00GASKET$3.75$3.221 In-Stock
14357-24521-10-00CUP, FILTER$5.44$4.90Not Shipping
15357-24522-10-00GASKET$8.99$7.01Not Shipping
16357-24515-10-00NET, FILTER 2$24.99$20.49Usually ships in 7-10 business days
172N3-24531-00-00NUT$8.49$7.64Usually ships in 7-10 business days
182N3-24532-00-00GASKET$4.65$4.18Not Shipping
192A6-24611-00-00BODY, CAP$39.99$32.79Not Shipping
201W1-24612-00-00GASKET, CAP$10.99$8.573 In-Stock
2190445-083J5-00

(replaces part #
90445-09115-00)

HOSE (L460)$11.49$8.9610+ In-Stock
225RB-24315-00-00

(replaces part #
90445-09089-00)

PIPE 5$8.49$6.6210+ In-Stock
2390467-08003-00CLIP, SCISSOR$11.49$8.9610+ In-Stock
245L9-F4182-00-00

(replaces part #
2A6-24182-00-00)

DAMPER, LOCATING 2$17.49$14.34Not Shipping
