1981 Yamaha DT175 Frame - Tool OEM Parts Diagram

Submodel DT175H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME - TOOL

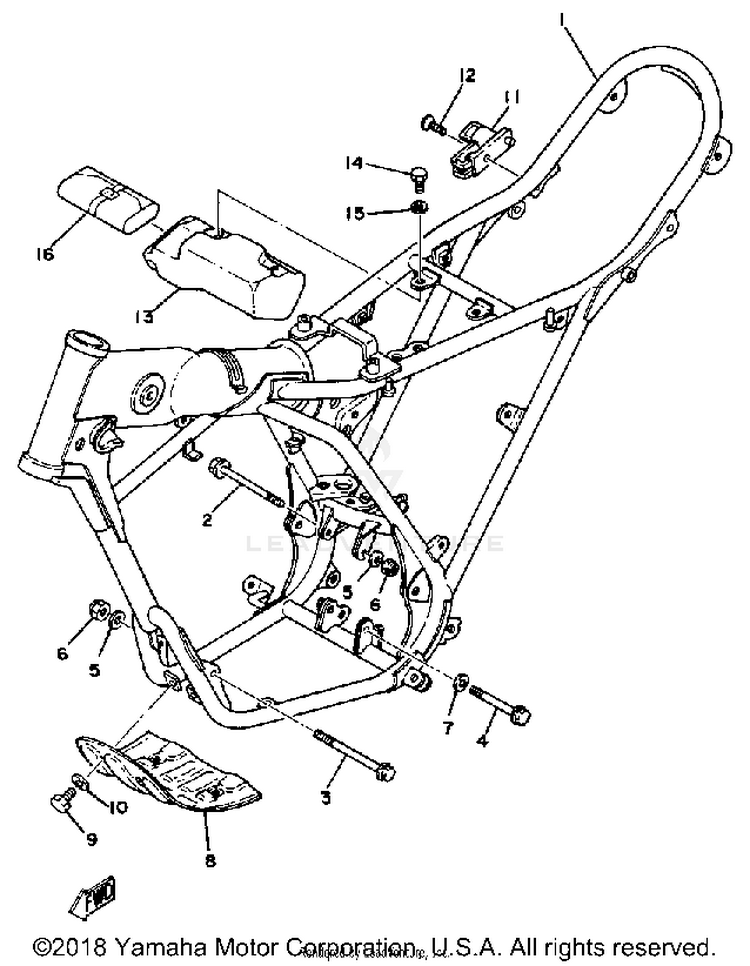

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13J0-21110-00-33FRAME | YAMAHA BLACK$363.99$311.54Usually ships in 7-10 business days
290105-08099-00BOLT, FLANGE$6.49$5.0610+ In-Stock
390105-08120-00BOLT, FLANGE$10.49$8.1810+ In-Stock
490105-10037-00BOLT, WASHER BASED$9.49$7.404 In-Stock
592990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
690185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
792990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
82A6-21471-00-90PROTECTOR, ENGINE | UNI CHROME (BLK)$22.99$18.85Not Shipping
997013-06012-00BOLT$6.49$5.0610+ In-Stock
1092990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
115H0-21308-01-00

(replaces part #
55E-21308-00-00)

HELMET HANGER ASSY$91.99$71.75Usually ships in 7-10 business days
1298603-06018-00SCREW, OVAL HEAD$0.35$0.32Not Shipping
133J0-21170-00-00BOX$33.99$27.87Usually ships in 7-10 business days
1497013-06012-00BOLT$6.49$5.0610+ In-Stock
1592990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
162A6-W2810-01-00

(replaces part #
2A6-W2810-00-00)

TOOL KIT$212.99$166.13Usually ships in 7-10 business days
