1981 Yamaha IT465 Crankcase OEM Parts Diagram

Submodel IT465H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

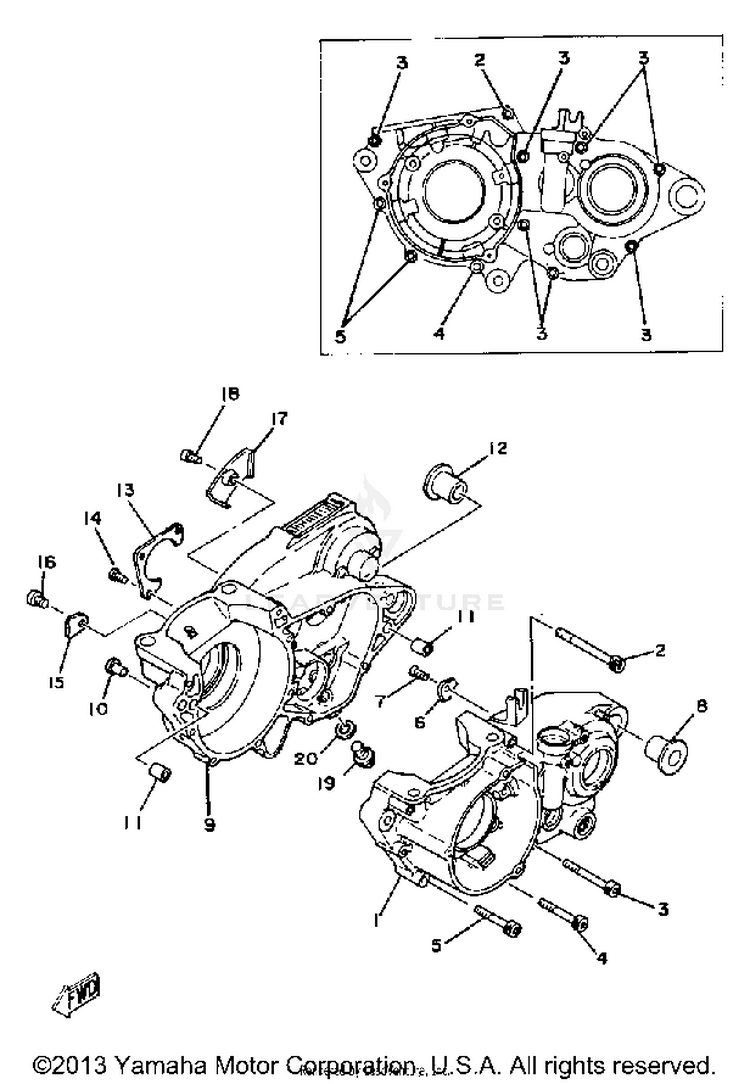

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-01366-00CRANKCASE SET (3R5)$349.99$280.45Not Shipping
291317-06075-00

(replaces part #
91316-06075-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.066 In-Stock
391317-06060-00

(replaces part #
91316-06060-00)

BOLT$4.05$3.4810+ In-Stock
491317-06050-00

(replaces part #
91316-06050-00)

BOLT$4.20$3.6110+ In-Stock
591317-06045-00

(replaces part #
91316-06045-00)

BOLT$5.49$4.2810+ In-Stock
63AK-15383-01-00PLATE, BEARING COVER$9.49$8.54Usually ships in 7-10 business days
798603-06012-00SCREW, OVAL HEAD (92701-06012)$1.85$1.66Not Shipping
890387-16776-00COLLAR$10.49$8.60Not Shipping
999999-01366-00CRANKCASE SET (3R5)$349.99$280.45Not Shipping
1090338-07124-00

(replaces part #
90338-07011-00)

PLUG$11.49$8.963 In-Stock
1199530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1290387-16776-00COLLAR$10.49$8.60Not Shipping
133R4-15381-00-00PLATE, BEARING COVER$5.49$4.94Usually ships in 7-10 business days
1497885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
154V4-15118-00-00HOLDER$32.99$25.733 In-Stock
1698580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
173R4-15113-00-00PLATE$11.49$9.42Not Shipping
1897885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1990340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
2090430-12207-00GASKET$8.49$6.6210+ In-Stock
