1981 Yamaha IT465 Cylinder OEM Parts Diagram

Submodel IT465H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

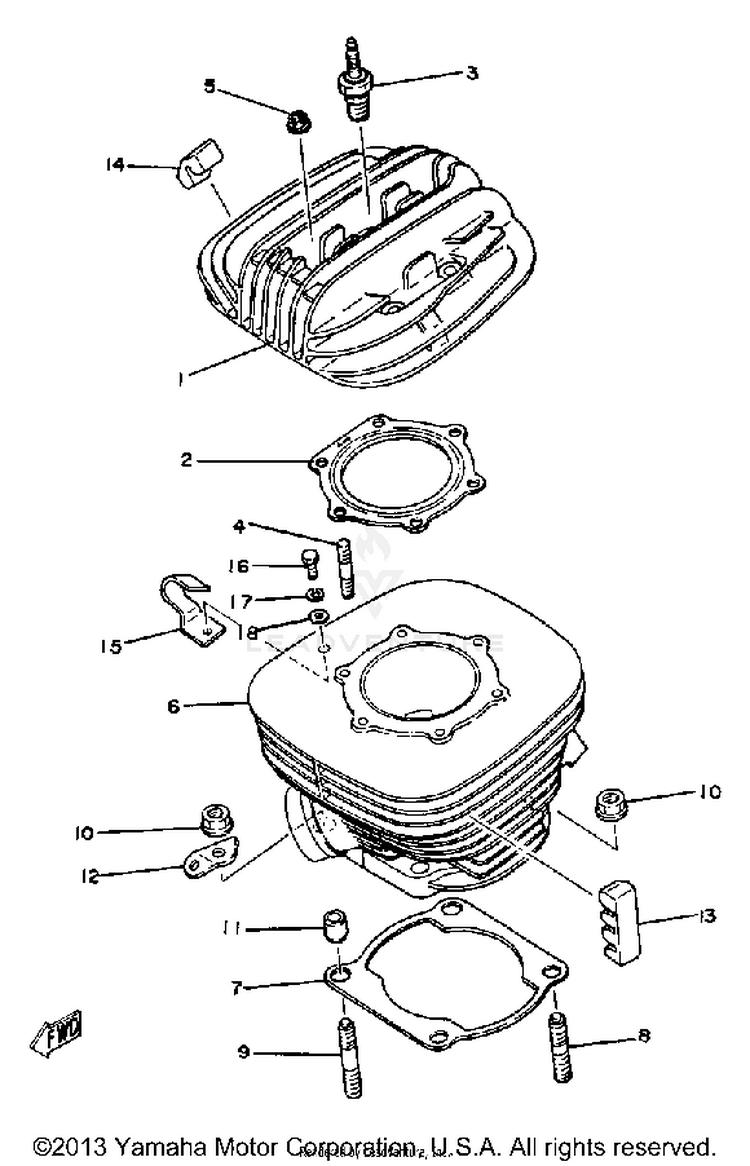

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R5-11111-00-00HEAD, CYLINDER 1$119.99$93.59Not Shipping
24V6-11181-00-00GASKET, CYLINDER HEAD 1$47.47$38.93Not Shipping
3BR8-ES000-00-00

(replaces part #
NGK-B8ES0-00-00)

BR8ES NGK SCREW TOP | L.M.$4.45$4.2410+ In-Stock
490116-08564-00

(replaces part #
90116-08321-00)

BOLT, STUD$11.49$8.969 In-Stock
590179-08491-00NUT$2.80$2.4110+ In-Stock
64V6-11311-00-00CYLINDER 1$618.99$517.60Not Shipping
740T-11351-01-00

(replaces part #
40T-11351-00-00)

GASKETCYLINDER$24.99$19.494 In-Stock
890116-12315-00BOLT, STUD$8.49$7.64Not Shipping
990116-12316-00BOLT, STUD$8.49$7.64Not Shipping
1090179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
1191815-16017-00

(replaces part #
91810-17016-00)

PIN, DOWEL$9.49$7.404 In-Stock
123R5-14619-00-00HOOK, SPRING$3.00$2.58Not Shipping
132A6-11127-00-00

(replaces part #
2N6-11127-00-00)

ABSORBER 3$14.99$12.29Not Shipping
144V5-11161-00-00ABSORBER 1$10.54$8.64Not Shipping
154V5-1131E-00-00HOLDER 1$7.46$6.71Usually ships in 7-10 business days
1697017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1890201-063J2-00WASHER, PLATE$6.49$5.0610+ In-Stock
