1981 Yamaha IT465 Handle Switch-Lever OEM Parts Diagram

Submodel IT465H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

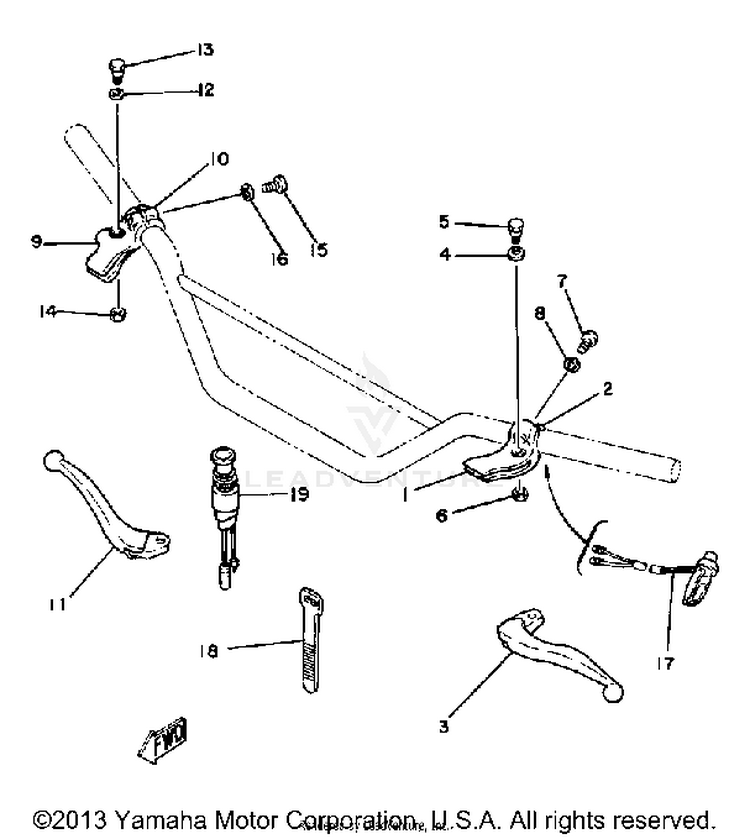

HANDLE SWITCH-LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15F6-82911-00-00HOLDER, LEVER 1$35.99$29.51Not Shipping
24V4-82913-00-00HOLDER, LEVER LOWER 1$31.99$24.95
323X-83912-02-00

(replaces part #
23X-83912-00-00)

LEVER 1$30.99$24.1710+ In-Stock
490201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
590109-061F3-00

(replaces part #
90109-06797-00)

BOLT$8.49$6.623 In-Stock
695617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
798517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
892907-05100-00

(replaces part #
92906-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
938V-82921-00-00HOLDER, LEVER 2$46.99$36.658 In-Stock
104V4-82913-00-00HOLDER, LEVER LOWER 1$31.99$24.95
113M2-93922-00-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
1290201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1390109-061F3-00

(replaces part #
90109-06797-00)

BOLT$8.49$6.623 In-Stock
1495617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1598517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1692907-05100-00

(replaces part #
92906-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
1723X-83976-01-00

(replaces part #
23X-83976-00-00)

SWITCH, HANDLE 1$41.99$32.758 In-Stock
18437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
194V5-82520-00-00LIGHT SWITCH ASSEMBLY$153.99$120.11Not Shipping
