1981 Yamaha IT465 Seat OEM Parts Diagram

Submodel IT465H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

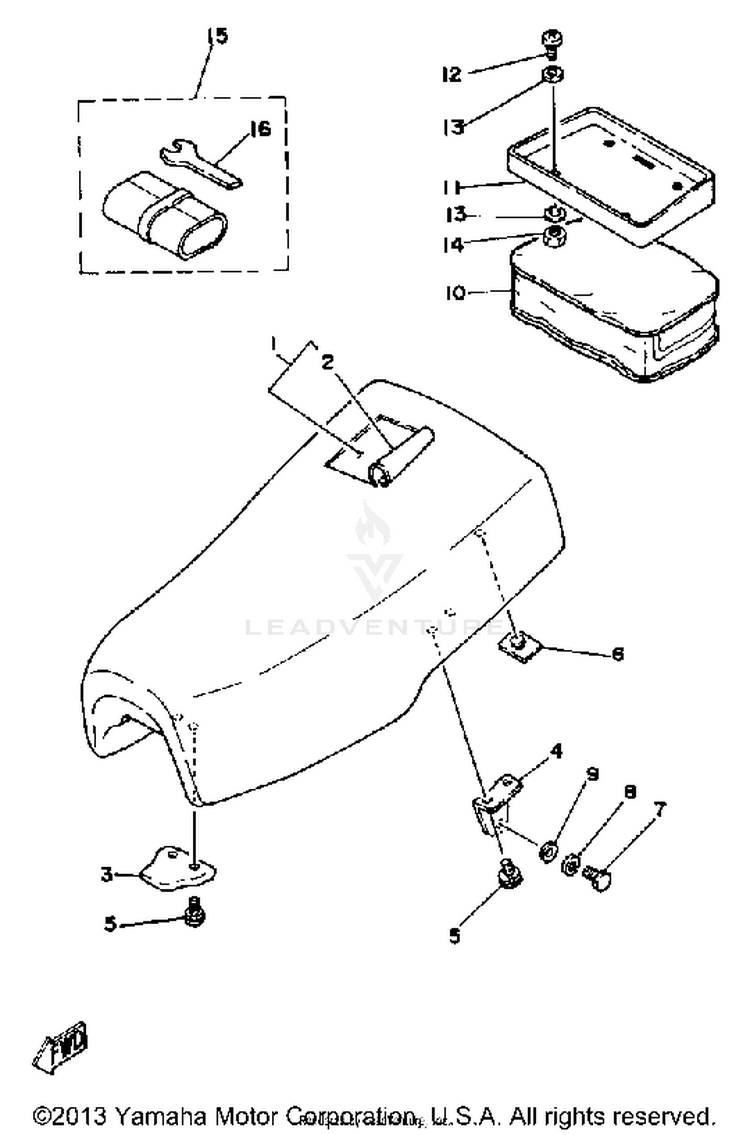

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14V5-W2473-10-00SEMI-DBL-SEAT ASSEMBLY$131.99$102.95Not Shipping
24V5-24771-10-00COVER, SM-DBL SEAT (4V5-24771$79.99$62.39Not Shipping
31M1-24748-00-00BRACKET, SEAT$11.99$9.83Not Shipping
41W1-24738-00-00BRACKET, SEAT$11.99$9.83Not Shipping
590101-06304-00BOLT$8.49$6.624 In-Stock
6509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
797D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
992990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
104V5-24850-00-00CARRIER BOX ASSEMBLY$161.99$126.35Not Shipping
114V5-24833-00-00BRACKET, CARRIER 2$51.99$40.55Not Shipping
1298580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1390201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1495617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
151W2-W2810-00-00TOOL KIT$73.99$57.71Not Shipping
1610V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
