1981 Yamaha XS1100 Flasher Light OEM Parts Diagram

Submodel XS1100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

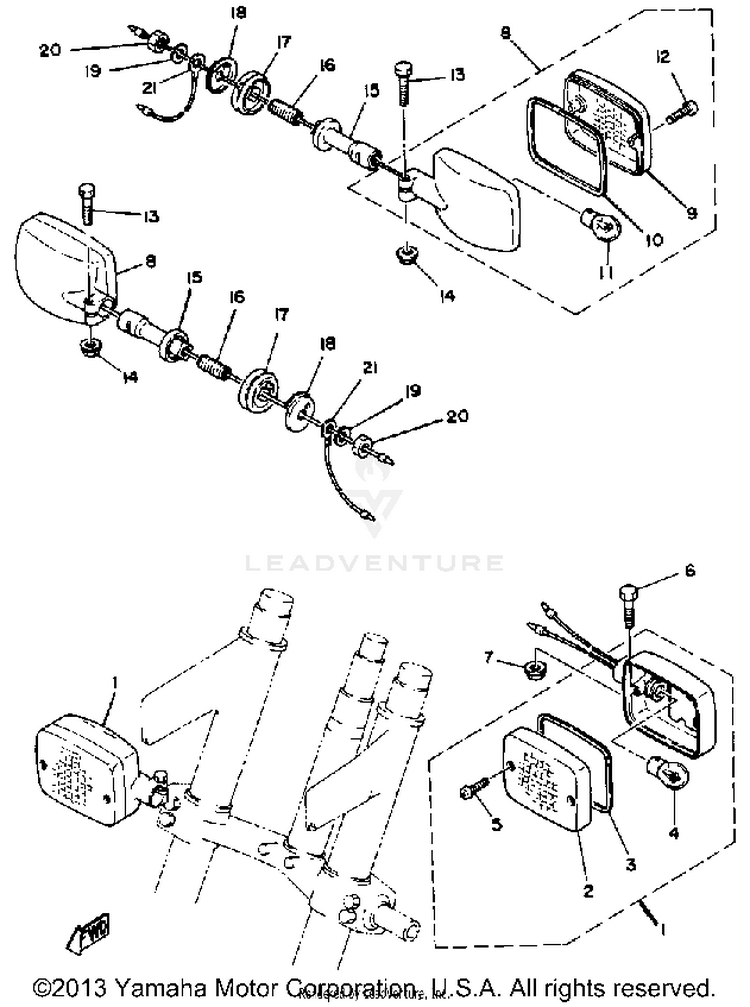

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12H7-83310-70-00FRT FLSHR LITE ASSEMBLY | CHROME PLATED$116.99$91.25Usually ships in 7-10 business days
22H7-83312-00-00LENS, FLASHER$11.49$9.42Usually ships in 7-10 business days
32H7-83313-00-00GASKET, FLSHR LENS$4.30$3.87Usually ships in 7-10 business days
4256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
598580-04020-00

(replaces part #
2H7-83333-00-00)

SCREW, PAN HEAD$5.99$5.39Usually ships in 7-10 business days
697017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
795780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
82H7-83330-70-00R FLSHR LITE ASSEMBLY | CHROME PLATED$82.99$64.73Usually ships in 7-10 business days
92H7-83312-00-00LENS, FLASHER$11.49$9.42Usually ships in 7-10 business days
102H7-83313-00-00GASKET, FLSHR LENS$4.30$3.87Usually ships in 7-10 business days
11256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
1298580-04020-00

(replaces part #
2H7-83333-00-00)

SCREW, PAN HEAD$5.99$5.39Usually ships in 7-10 business days
1397017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
1495780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
152H7-83318-00-00STAY, FLASHER 1$38.99$31.97Usually ships in 7-10 business days
162H7-83325-00-00BLT, FLSHR STY FTNG$7.49$6.74Usually ships in 7-10 business days
171E6-83321-00-00DAMPER, FLASHER 1$8.49$7.64Usually ships in 7-10 business days
1890209-10172-00WASHER, SPEC''L SHAP$2.75$2.48Usually ships in 7-10 business days
1992990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
2090170-10227-00NUT, HEXAGON$3.76$3.38Usually ships in 7-10 business days
213FU-83364-00-00WIRE, EARTH (GROUND) LEAD 1$11.99$9.83Usually ships in 7-10 business days
