1981 Yamaha XS1100 Frame OEM Parts Diagram

Submodel XS1100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

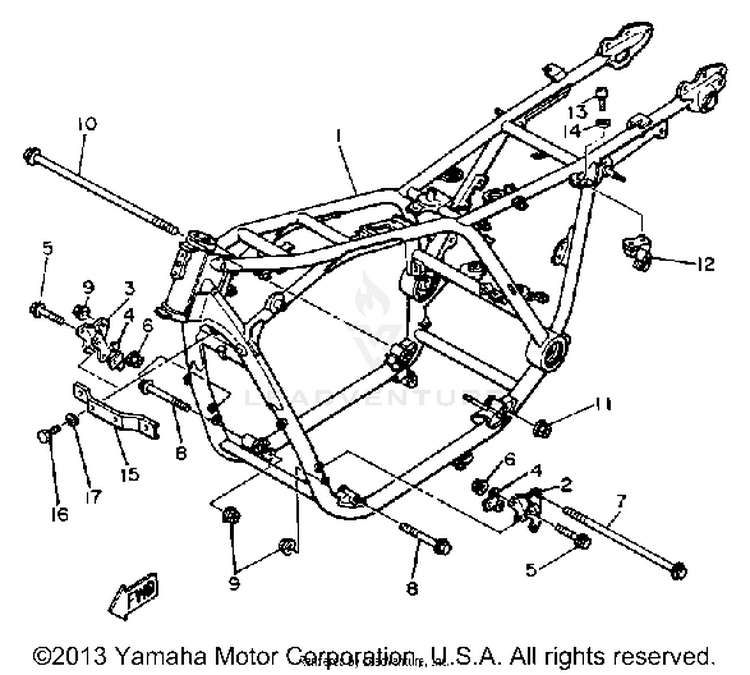

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14R1-21110-00-98FRAME | LOW GLOSS BLK$494.99$424.26Usually ships in 7-10 business days
22H7-21315-00-00STAY, ENGINE 2$10.70$8.77Usually ships in 7-10 business days
32H7-21316-00-00STAY, ENGINE 3$5.44$4.90Usually ships in 7-10 business days
42H9-2136H-00-00STAY, OIL COOLER$4.15$3.74Usually ships in 7-10 business days
590105-08107-00BOLT, WASHER BASED$4.40$3.96Not Shipping
690179-08491-00

(replaces part #
90179-08246-00)

NUT$2.80$2.4110+ In-Stock
790105-10056-00BOLT, WASHER BASED$20.99$17.21Usually ships in 7-10 business days
890105-10105-00BOLT, FLANGE$13.49$10.524 In-Stock
990179-10658-00

(replaces part #
90179-10247-00)

NUT$10.49$8.1810+ In-Stock
1090105-12047-00

(replaces part #
90105-12106-00)

BOLT, FLANGE$28.99$23.77Usually ships in 7-10 business days
1190179-12657-00

(replaces part #
90179-12421-00)

NUT$6.49$5.0610+ In-Stock
122H7-21308-00-00HELMET HANGER ASSEMBLY$52.99$41.33Usually ships in 7-10 business days
1397885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
152H9-2134Y-00-00STAY, HORN$15.48$12.69Usually ships in 7-10 business days
1697017-08016-00

(replaces part #
97016-08016-00)

BOLT$9.49$7.408 In-Stock
1792907-08100-00

(replaces part #
92906-08100-00)

WASHER, SPRING$9.49$7.4010+ In-Stock

Get additional RM Cash on OEM purchases!

Select parts to add, then click
