1981 Yamaha XS1100 Handle Switch Lever OEM Parts Diagram

Submodel XS1100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

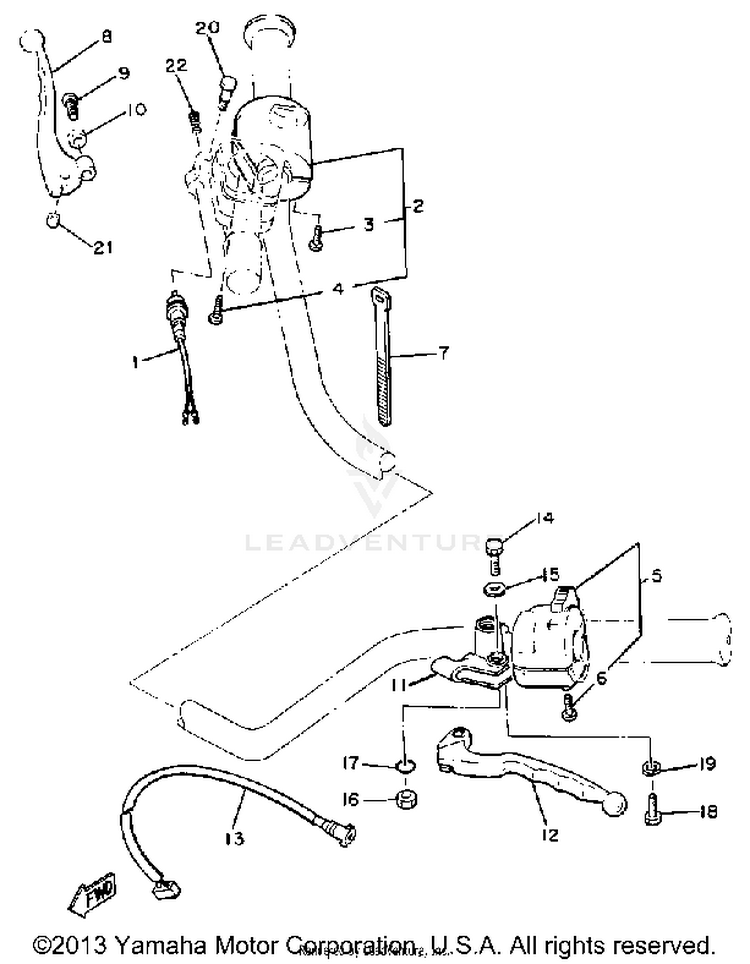

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126H-83980-00-00

(replaces part #
1A0-83980-30-00)

FRONT STOP SWITCH ASSY$80.99$63.17Usually ships in 7-10 business days
22H7-83975-00-01UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
398517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
498507-05040-00

(replaces part #
98501-05040-00)

SCREW, PAN HEAD$9.49$8.543 In-Stock
53J6-83972-00-00SWITCH, HANDLE 4$63.99$49.91Not Shipping
698517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
7437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
82H7-83922-20-00LEVER R$44.99$36.89Usually ships in 7-10 business days
990149-06131-00SCREW$9.49$7.4010+ In-Stock
1090170-06010-00NUT$9.49$7.404 In-Stock
113Y6-82911-00-00HOLDER, LEVER 1$60.99$47.573 In-Stock
122H0-83912-31-00

(replaces part #
2H0-83912-30-00)

LEVER L$34.99$27.292 In-Stock
133Y6-82917-00-00SWITCH$16.49$13.52Usually ships in 7-10 business days
1490109-06798-00

(replaces part #
2H7-83945-00-00)

BOLT$9.49$7.404 In-Stock
1590201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1695617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1793210-11368-00O-RING$6.49$5.84Usually ships in 7-10 business days
1897007-06022-00

(replaces part #
97006-06022-00)

BOLT$9.49$7.402 In-Stock
1992907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
2090109-06577-00

(replaces part #
90109-06465-00)

BOLT$6.49$5.0610+ In-Stock
2190386-08094-00BUSH, SPEC''L NYLON$4.60$4.14Not Shipping
2290501-10510-00SPRING, COMPRESSION$4.55$4.10Usually ships in 7-10 business days
