1982 Yamaha IT175 Carburetor OEM Parts Diagram

Submodel IT175J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

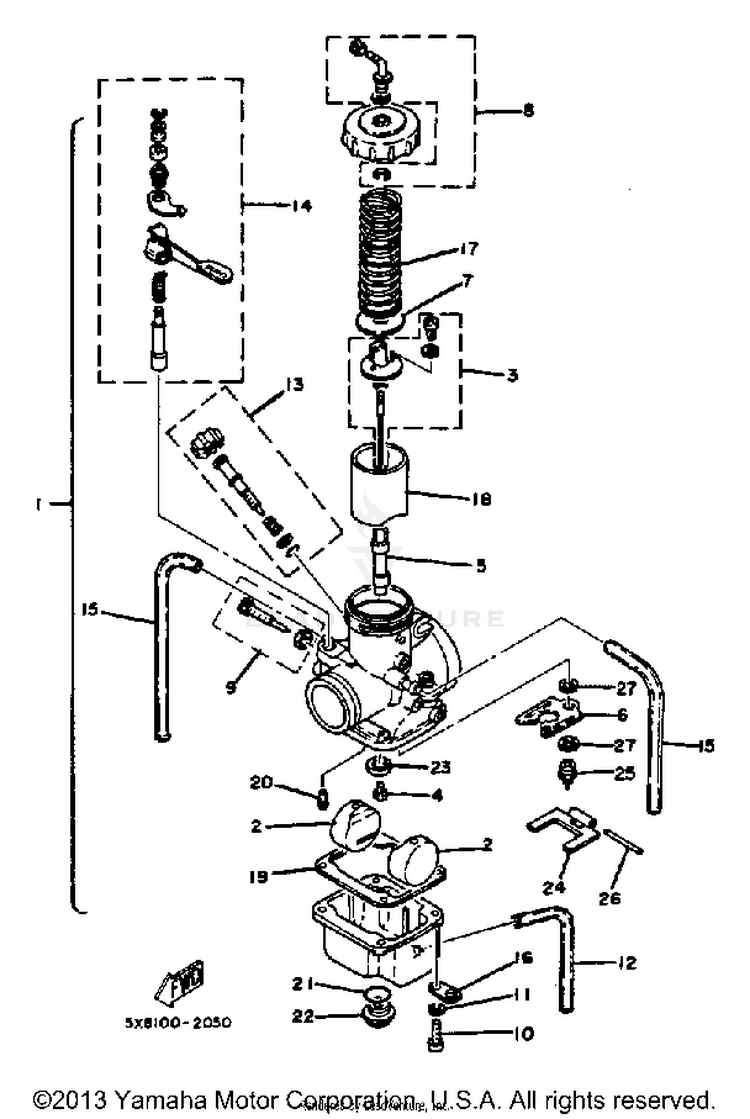

CARBURETOR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-137-14143-64-00JET, MAIN (#320) | U.R. STD$11.99$9.351 In-Stock
-137-14143-66-A1JET, MAIN (#330) | U.R.$10.49$8.186 In-Stock
15X8-14101-10-00CARBURETOR ASSEMBLY 1$167.99$131.03Not Shipping
2310-14185-00-00FLOAT$47.99$39.35Not Shipping
3239-W1418-00-00NEEDLE SET (6F21)$54.99$42.89Not Shipping
4137-14143-62-A1JET, MAIN (#310) | U.R.$12.49$9.741 In-Stock
5239-14141-44-00NOZZLE, MAIN P-4$48.99$40.17Not Shipping
6483-14146-00-00PLATE$22.99$18.85Not Shipping
7509-14136-00-00SEAT, SPRING$12.49$10.24Not Shipping
83R3-W1415-00-00ADJUSTER SET$16.96$13.91Not Shipping
9204-W1411-00-00THROTTLE SCREW SET$23.99$19.67Not Shipping
1097885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1192990-05100-00WASHER, SPRING-$0.8310+ In-Stock
122J2-14196-00-00PIPE$38.99$30.413 In-Stock
132X3-W1412-00-00AIR SCREW SET$47.99$39.35Not Shipping
141W1-W1414-00-00STARTER PLNGR SET$36.48$29.91Not Shipping
1589A-14987-00-00

(replaces part #
310-14197-00-00)

HOSE$17.99$14.036 In-Stock
16313-14146-00-00PLATE$18.99$15.57Not Shipping
17363-14131-00-00SPRING, THROTTLE VALVE$16.49$13.52Not Shipping
185X8-14112-20-00VALVE, THROTTLE 1$95.66$74.61Not Shipping
19483-14184-00-00GASKET, FLOAT CHAMBER$24.99$19.495 In-Stock
20193-14142-60-00JET, PILOT #60 (60)$5.00$4.30Not Shipping
21558-14147-00-00O-RING$10.99$8.576 In-Stock
22500-14115-00-00PLUG, SCREW$32.99$25.733 In-Stock
231G8-14153-00-00WASHER, MAIN JET$12.08$9.91Not Shipping
24310-14187-00-00ARM, FLOAT$17.99$14.75Not Shipping
2524X-14107-33-00NEEDLE VALVE SET (#3.3)$55.99$43.672 In-Stock
26127-14186-00-00PIN, FLOAT$6.99$5.762 In-Stock
27239-14195-00-00WASHER, NEEDLE VALVE$14.49$11.303 In-Stock
