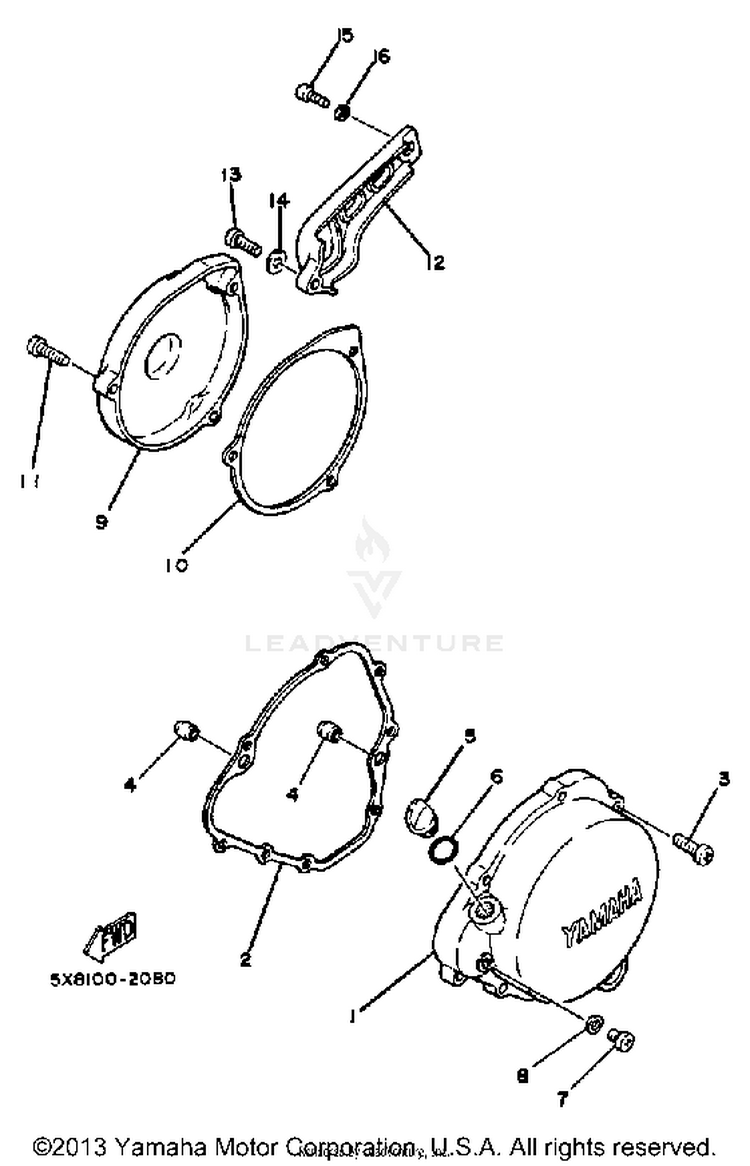

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R3-15411-01-00COVER, CRANKCASE L$156.99$122.45Not Shipping
23R3-15451-02-00

(replaces part #
3R3-15451-01-00)

GASKET,CRCS COVER$46.99$36.6510+ In-Stock
398517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
51G8-15362-00-00PLUG, OIL LEVEL$17.49$13.64Not Shipping
693210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
798517-06008-00

(replaces part #
98506-06008-00)

SCREW$9.49$7.404 In-Stock
890430-06016-00GASKET$9.49$7.406 In-Stock
93R6-15421-00-00COVER, CRANKCASE R$53.99$42.11Not Shipping
103R6-15455-00-00GASKET 1 (3R3-15455-00)$20.99$17.21Not Shipping
1198517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1255Y-15431-00-00COVER, CRANKCASE 3$20.99$17.21Not Shipping
1398507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1490201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1598580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1692990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
