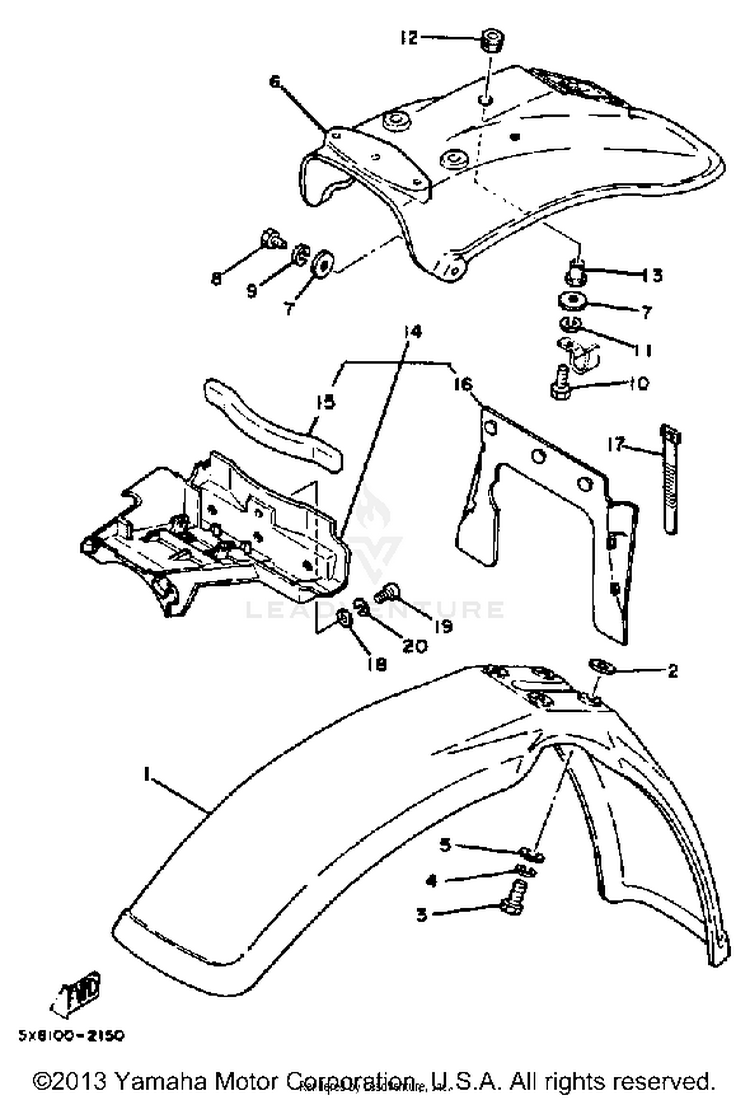

1982 Yamaha IT175 Fender OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3R9-21511-11-00	FENDER, FRONT \| SKY BLUE	$46.99	$45.65	6 In-Stock
2	90201-06020-00 (replaces part # 90201-065F3-00)	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
3	97024-06020-00 (replaces part # 97023-06020-00)	BOLT	$9.49	$7.40	10+ In-Stock
4	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
5	90209-06187-00	WASHER	$9.49	$7.40	10+ In-Stock
6	3R6-21610-11-00	FENDER, REAR	$32.12	$26.34	Not Shipping
7	90201-06571-00	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
8	97017-06014-00 (replaces part # 97301-06014-00)	BOLT	$9.49	$7.40	10+ In-Stock
9	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
10	97017-06025-00 (replaces part # 97011-06025-00)	BOLT	$4.55	$3.91	10+ In-Stock
11	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
12	90480-14198-00	GROMMET	$10.49	$8.18	10+ In-Stock
13	90387-06158-00 (replaces part # 90387-06388-00)	COLLAR	$9.49	$7.40	10+ In-Stock
14	5X8-21620-00-00	GUARD, MUD	$48.61	$39.86	Not Shipping
15	565-21746-00-00	DAMPER	$13.72	$11.25	Not Shipping
16	5X3-21642-00-00	GUARD, FLAP	$16.98	$13.92	Not Shipping
17	437-83936-01-00	BAND, SWITCH CORD	$8.49	$6.62	10+ In-Stock
18	90201-06571-00	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
19	98507-06014-00 (replaces part # 98503-06014-00)	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
20	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
