1982 Yamaha IT175 Cylinder OEM Parts Diagram

Submodel IT175J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

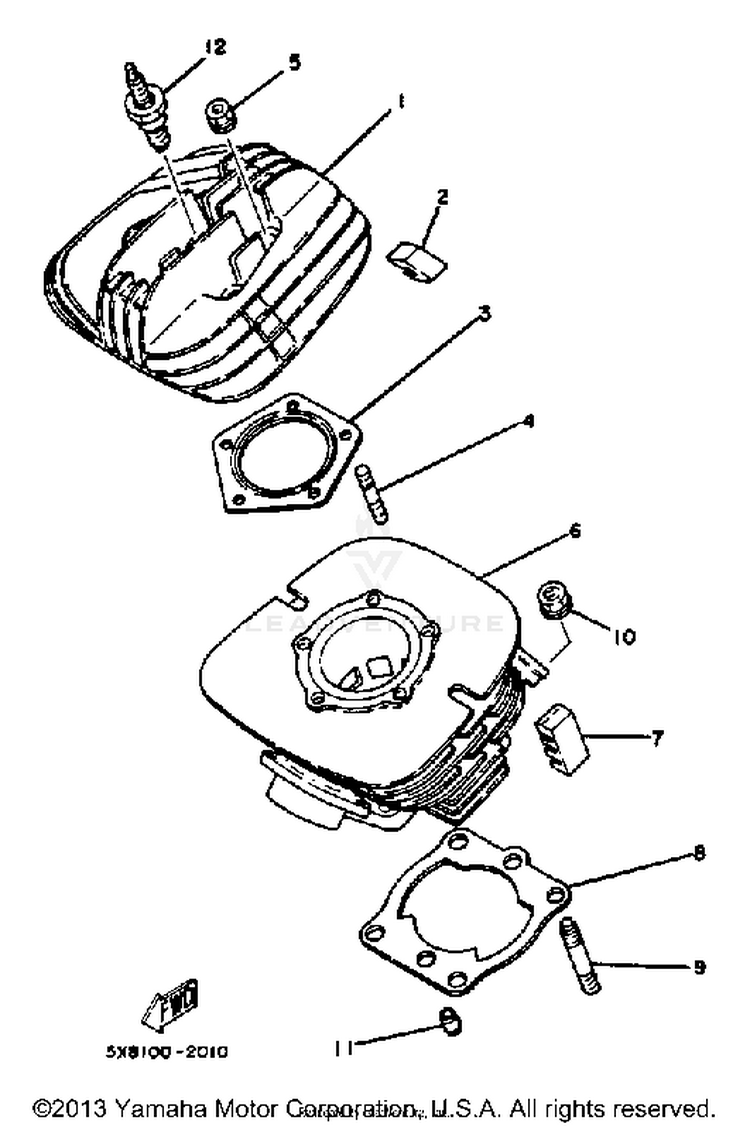

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X8-11111-00-00HEAD, CYLINDER 1$73.36$57.22Not Shipping
23R6-11161-00-00ABSORBER 1$14.49$11.88Not Shipping
35X8-11181-00-00GASKET, CYLINDER HEAD 1$17.99$14.034 In-Stock
490116-08564-00

(replaces part #
90116-08321-00)

BOLT, STUD$11.49$8.969 In-Stock
590179-08491-00NUT$2.80$2.4110+ In-Stock
65X8-11311-00-00CYLINDER 1$405.99$316.67Not Shipping
73R6-11162-00-00ABSORBER 2$22.99$17.9310+ In-Stock
84V2-11351-01-00

(replaces part #
4V2-11351-00-00)

GASKET,CYLINDER$21.99$17.151 In-Stock
990116-10278-00BOLT, STUD$4.80$4.32Usually ships in 7-10 business days
1095704-10500-00

(replaces part #
95701-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1199530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
12B8E-G0000-00-00

(replaces part #
NGK-B8EG0-00-00)

B8EG NGK SPLUG 4PK | L.M.$4.95$4.766 In-Stock
