C - D - I - MAGNETO

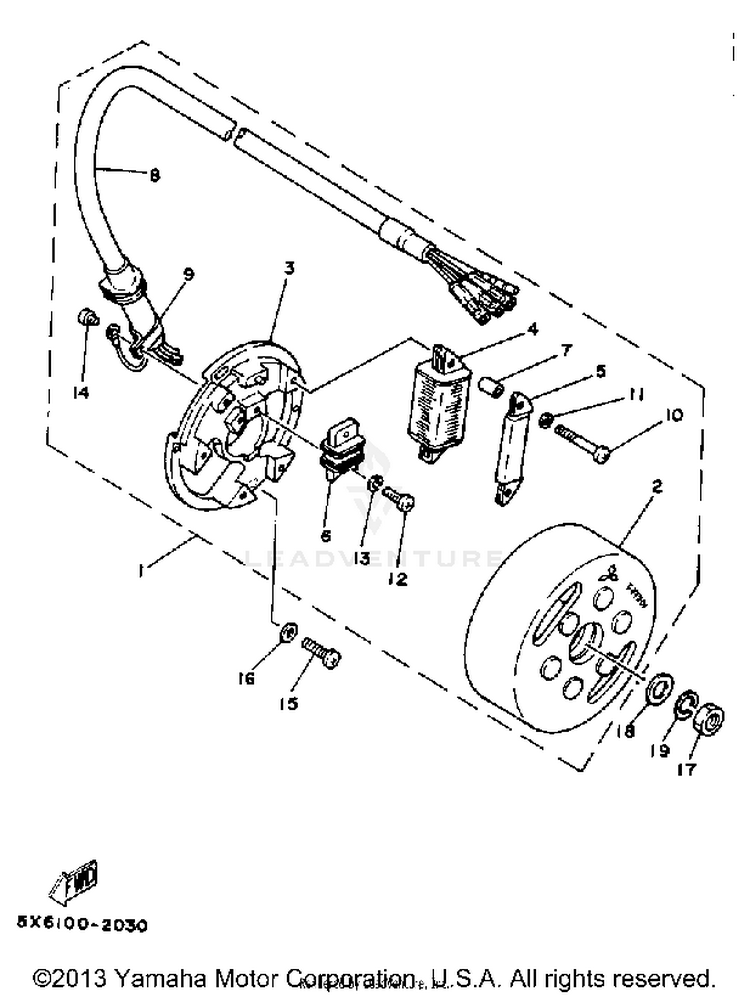

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R5-85500-20-00CDI MAGNETO ASSEMBLY$401.99$313.55Usually ships in 7-10 business days
23R5-85550-20-00ROTOR ASSEMBLY$580.99$453.17Usually ships in 7-10 business days
33R5-85509-20-00BASE, MAGNETO$80.89$63.09Usually ships in 7-10 business days
43R5-85511-20-00COIL SOURCE 1$210.99$164.57Not Shipping
53R5-85512-20-00COIL SOURCE 2$181.99$141.95Not Shipping
64V6-85580-20-00COIL, PULSER$175.99$137.27Not Shipping
71W2-85516-20-00SPACER$22.99$18.85Usually ships in 7-10 business days
85L5-85515-20-00LEAD WIRE ASSEMBLY$25.99$21.31Not Shipping
9104-81328-20-00CLAMP, LEAD$4.60$4.14Usually ships in 7-10 business days
1098507-04035-00

(replaces part #
98501-04035-00)

SCREW, PAN HEAD$9.49$7.406 In-Stock
1192990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1298580-04014-00

(replaces part #
98503-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1392990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1498517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1598580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1692990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1790170-12347-00NUT, HEXAGON$11.49$8.963 In-Stock
1890201-12593-00WASHER, PLATE$10.49$8.185 In-Stock
1992990-12100-00

(replaces part #
92901-12100-00)

WASHER, SPRING$9.49$7.405 In-Stock
