1982 Yamaha YZ490 Kick Starter OEM Parts Diagram

Submodel YZ490J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

KICK STARTER

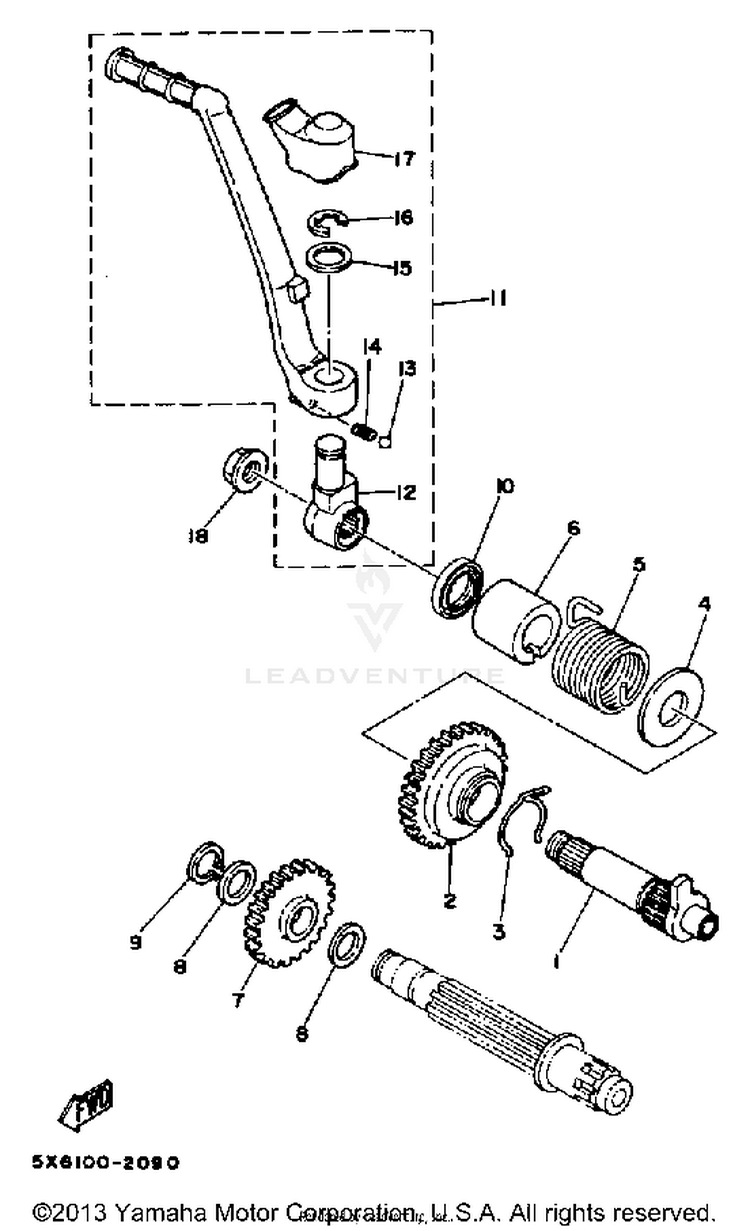

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
156A-15661-01-00AXLE, KICK$212.99$166.13Not Shipping
23R4-15641-00-00GEAR, KICK$106.99$83.45Not Shipping
390468-26048-00CLIP$9.49$7.4010+ In-Stock
490201-20358-00WASHER, PLATE$4.85$4.17Not Shipping
590508-30422-00SPRING, TORSION$23.99$18.717 In-Stock
63R4-15664-00-00GUIDE, SPRING$39.99$32.79Not Shipping
73R4-15651-00-00GEAR, KICK IDLE$86.99$67.85Usually ships in 7-10 business days
890201-17545-00WASHER, PLATE$9.49$7.403 In-Stock
999009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
1093102-20309-00OIL SEAL$11.49$8.9610+ In-Stock
113R4-15620-00-00KICK CRANK ASSEMBLY$183.99$143.51Not Shipping
123R4-15621-01-00BOSS, KICK CRANK$99.99$77.99Not Shipping
1393507-32031-00BALL$5.49$4.2810+ In-Stock
1490501-12081-00SPRING, BOSS STOPPER$9.49$7.4010+ In-Stock
1590201-15234-00WASHER, PLATE$9.49$7.406 In-Stock
1699006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
172K7-15618-00-00COVER, KICK LEVER$15.99$12.47Not Shipping
1890179-12659-00

(replaces part #
90179-12244-00)

NUT$9.49$7.4010+ In-Stock
