1982 Yamaha YZ490 Cylinder OEM Parts Diagram

Submodel YZ490J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

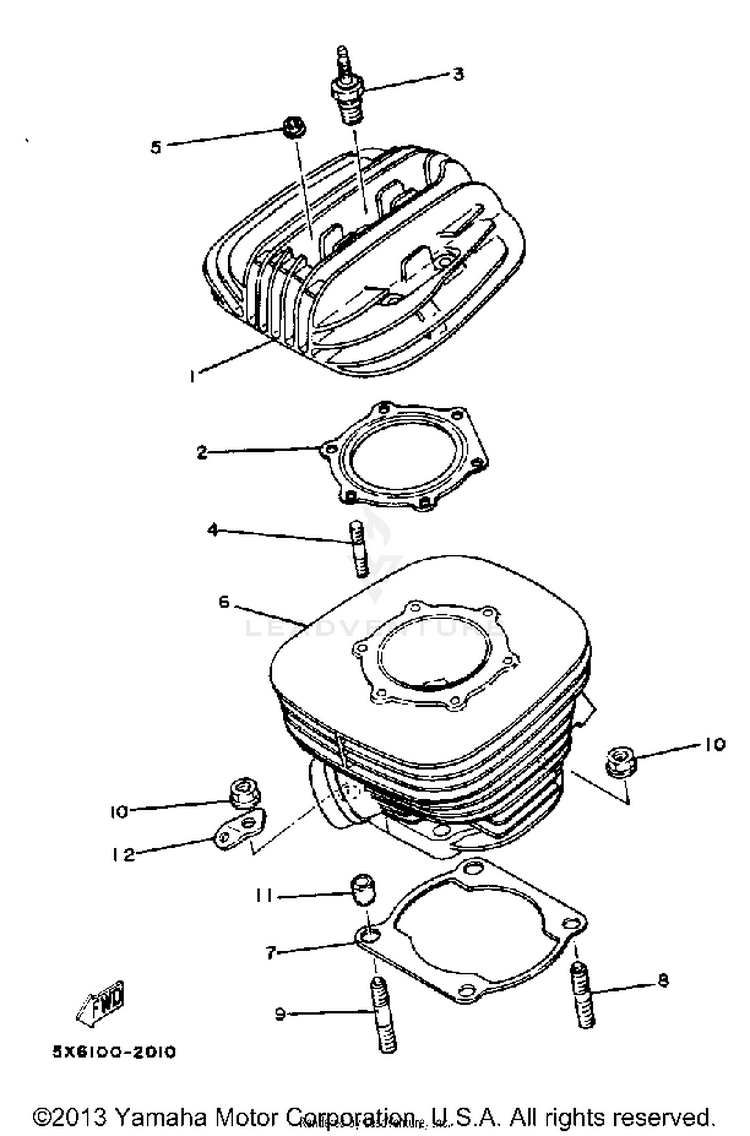

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X6-11111-00-00HEAD, CYLINDER 1$205.99$160.67Usually ships in 7-10 business days
25X6-11181-00-00GASKET, CYLINDER HEAD 1$33.99$29.04Not Shipping
3BR8-ES000-00-00

(replaces part #
NGK-B8ES0-00-00)

BR8ES NGK SCREW TOP | LM$4.45$4.2410+ In-Stock
490116-08564-00

(replaces part #
90116-08321-00)

BOLT, STUD$11.49$8.969 In-Stock
590179-08491-00NUT$2.80$2.4110+ In-Stock
65X6-11311-00-00CYLINDER 1$432.99$371.06Not Shipping
740T-11351-01-00

(replaces part #
40T-11351-00-00)

GASKETCYLINDER$24.99$19.494 In-Stock
890116-12315-00BOLT, STUD$8.49$7.64Not Shipping
990116-12316-00BOLT, STUD$8.49$7.64Not Shipping
1090179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
1191815-16017-00

(replaces part #
91810-17016-00)

PIN, DOWEL$9.49$7.404 In-Stock
123R5-14619-00-00HOOK, SPRING$3.00$2.58Not Shipping
