1982 Yamaha YZ490 Frame-Tool OEM Parts Diagram

Submodel YZ490J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME-TOOL

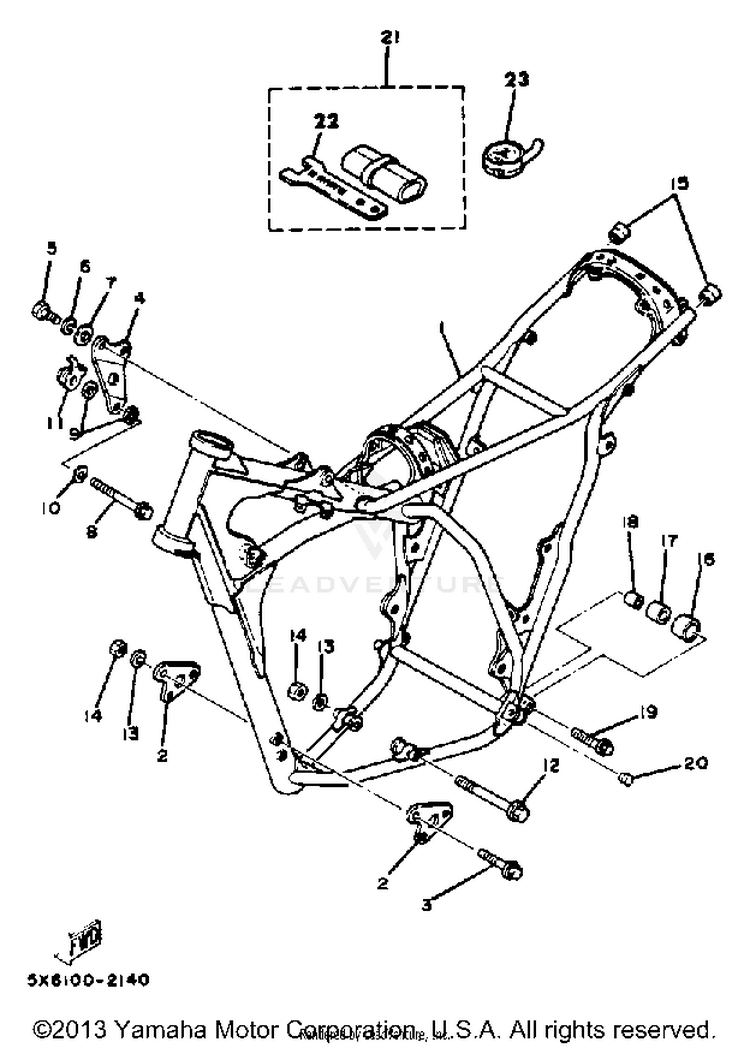

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X6-21110-00-33FRAME | YAMAHA BLACK$603.99$505.82Not Shipping
23R4-21415-00-00BRACKET, FRT UPR 1$16.49$12.86Not Shipping
395817-08075-00

(replaces part #
95811-08075-00)

BOLT, FLANGE$5.49$4.286 In-Stock
43R5-21425-00-00BRACKET, REAR UPR 1$38.38$31.47Not Shipping
597013-08025-00BOLT, KICK CRANK$9.49$7.406 In-Stock
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
792990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
895817-10060-00

(replaces part #
95811-10060-00)

BOLT, FLANGE$8.49$6.627 In-Stock
992990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
1092990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
114V6-21167-00-00HOLDER, NUT$5.86$5.27Not Shipping
1290105-08473-00

(replaces part #
95811-08165-00)

BOLT, WASHER BASED$7.99$7.19Not Shipping
1392990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
1490185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
1590339-13005-00PLUG$4.65$4.0010+ In-Stock
165X6-22178-00-00TENSIONER$33.99$26.516 In-Stock
174V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
1890387-083F3-00COLLAR$2.97$2.67Not Shipping
1995817-08040-00

(replaces part #
95811-08040-00)

BOLT, FLANGE$7.49$5.841 In-Stock
2090338-12131-00PLUG$1.50$1.35Not Shipping
211W4-28100-00-00TOOL KIT$24.99$20.49Not Shipping
2210V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
232X4-2811A-01-00GAUGE, AIR$83.99$65.51Not Shipping
